2016 BMW M4 GTS is the most agile, radical and powerful M4 ever created! It has motorsport-inspired looks and is driven by high-performance technology. It is also the first production road car with Water Injection System, which helps it receive a power boost of up to 493 HP (363 kW).

In other words, the M4 GTS is more than impressive. And here is another reason to support this: riding on a track ready chassis, this Special Edition M vehicle achieved a lap time of 7 minutes 28 seconds around the legendary Nürburgring-Nordschleife. This allowed BMW to highlight the innovative flair of the M engineers in developing M technologies on the powertrain, chassis and lightweight construction fronts.

SEE ALSO: BMW Individual Celebrates 25th Birthday with Custom BMW M4 Coupe

Other exclusive features here include the exclusive OLED light technology, the full three-way adjustable M coilover suspension, and intelligent lightweight body design. But at the heart of this unique car is M4 GTS' engine and its water injection supporting the performance.

More About the Water Injection System

2016 BMW M4 GTS Engine

In details, this BMW is powered by the M TwinPower Turbo 6-cylinder in-line engine from the BMW M4. As mentioned, it produces 493 hp (363 kW) at 7,600 rpm thanks to the additional innovative water injection technology.

As a matter of fact, this system is used for the first time in a road car. It takes the 6-cylinder in-line turbocharged unit to new performance heights by relaxing the thermal constraints on power and torque.

The horsepower this engine develops show an increase of 16 percent over the BMW M4 – at 6,250 rpm. In addition, there is also a boost in the peak torque, which has been increased by 10 percent to 599 Nm (442 lb-ft) from 4,000 rpm to 5,500 rpm.

These numbers help the BMW accelerate from 0 to 60 mph in a mere 3.7 seconds. The top speed is limited at 189.5 mph. Despite the significant extra power, the engine also excels on fuel efficiency. Rates are similar to those of the BMW M4 Coupe.

2016 BMW M4 GTS special edition is limited to 700 units worldwide. 300 units will be available for the first time in the US market.

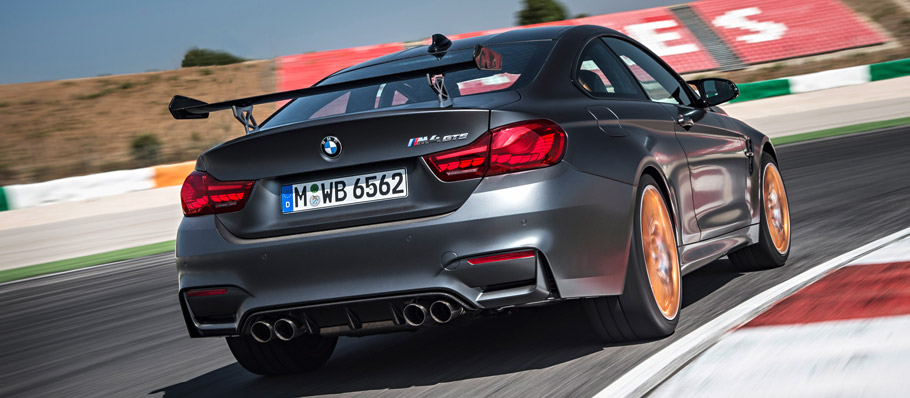

2016 BMW M4 GTS Rear View

2016 BMW M4 GTS Technical Specifications:

Body:
  • No of doors/seats
2/2
  • Length/width/height (unladen)
mm 4698/1870/1383
  • Wheelbase
mm 2812
  • Track, front/rear
mm 1596/1604
  • Ground clearance
mm 108
  • Turning circle
m 12.2
  • Fuel tank capacity
app ltr 60
  • Cooling system incl heater
ltr 10.0
  • Engine oil
ltr 7.0
  • Weight, unladen, to DIN/EU
kg 1510/1585
  • Max load to DIN
kg 390
  • Max permissible weight
kg 1900
  • Max axle load, front/rear
kg 975/1000
  • Max trailer load, Braked (12%)/unbraked
kg ---/---
  • Max roofload/max towbar download
kg ---/---
  • Luggage comp capacity
ltr 445
  • Air resistance
cd x A 0.34 x 2.25
Power Unit:
  • Config/No of cyls/valves
In-line/6/4
  • Engine technology
M TwinPower Turbo technology: two MonoScroll turbochargers,High Precision Injection, VALVETRONIC fully variable valve lift control, Double-VANOS variable camshaft timing, Water Injection
  • Effective capacity
cc 2979
  • Stroke/bore
mm 89.6/84.0
  • Compression ratio
:1 10.2
  • Fuel
min. RON 95
  • Max output
bHP 493
  • at
rpm 6250
  • Max torque
lb-ft 442
  • at
rpm 4000–5500
Electrical System:
  • Battery/installation
Ah/– 69/Luggage compartment
  • Alternator
A/W 209/2926
Driving Dynamics and Safety:
  • Suspension, front
Three-way M coilover suspension with aluminum double-joint spring-strut axle and M-specific elastokinematics
  • Suspension, rear
Three-way M coilover suspension with five-link axle in lightweight construction
  • Brakes, front
M carbon ceramic disc brakes vented with 6-piston fixed callipers
  • Brakes, rear
M carbon ceramic disc brakes vented with four-piston fixed callipers
  • Driving stability systems
Standard: DSC incl ABS and M Dynamic Mode, CBC (Cornering Brake Control), DBC (Dynamic Brake Control), Dry Braking function, Fading Compensation, Start-Off Assistant, Active M Differential linked to Integrated Chassis Management (ICM)
  • Safety equipment
Standard: airbags for driver and front passenger, side airbags for driver and front passenger, head airbags for front seats, three-point inertia-reel seatbelts on all seats with belt latch tensioner and belt force limiter
  • Steering
Electric Power Steering (EPS) with M-specific Servotronic function
  • Steering ratio, overall
:1 15.0
  • Tyres, front/rear
  • 265/35 ZR19 98Y
  • 285/30 ZR20 99Y
  • Rims, front/rear
  • 9.5J x 19 Light Alloy
  • 10.5J x 20 Light Alloy



Transmission:
  • Type of transmission
Seven-speed M double-clutch transmission with Drivelogic
  • Gear ratios                          I
:1 4.806
                                                II :1 2.593
                                                III :1 1.701
                                                IV :1 1.277
                                                V :1 1.000
                                                VI :1 0.844
                                                VII :1 0.671
                                                R :1 4.172
  • Final drive
:1 3.462
Performance:
  • Output per litre
bHP/ltr 165.5
  • Acceleration           0–60 mph
sec 3.7
  • Top speed
mph 189.5
BMW EfficientDynamics:
  • BMW EfficientDynamics standard features
Brake Energy Regeneration, electromechanical power steering, Automatic Start/Stop function, Optimum Gearshift Indicator in manual mode, intelligent lightweight construction, on-demand operation of ancillary units, map-regulated oil pump, Li-ion battery, differential with optimised warm-up behaviour, aerodynamics (Air Curtains, Air Breathers, underside panelling, front spoiler, rear wing with gurney flap)

 Source: BMW
