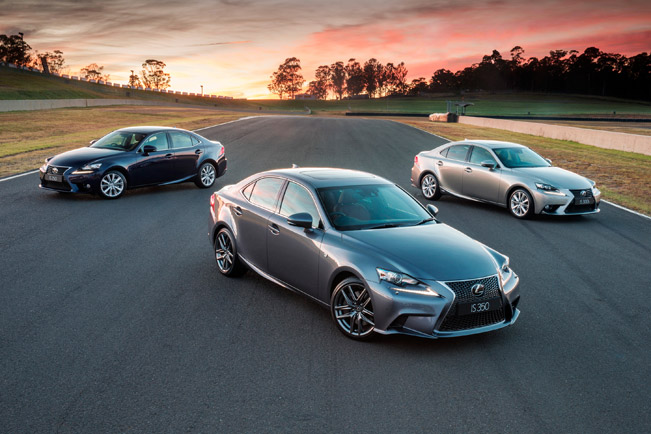

Lexus has just launched the long awaited third generation of the highly successful 2014 versions of the IS 250 and IS 350 sedans. The model line-up includes also the F Sport variants across the range and the new IS 300h hybrid model.

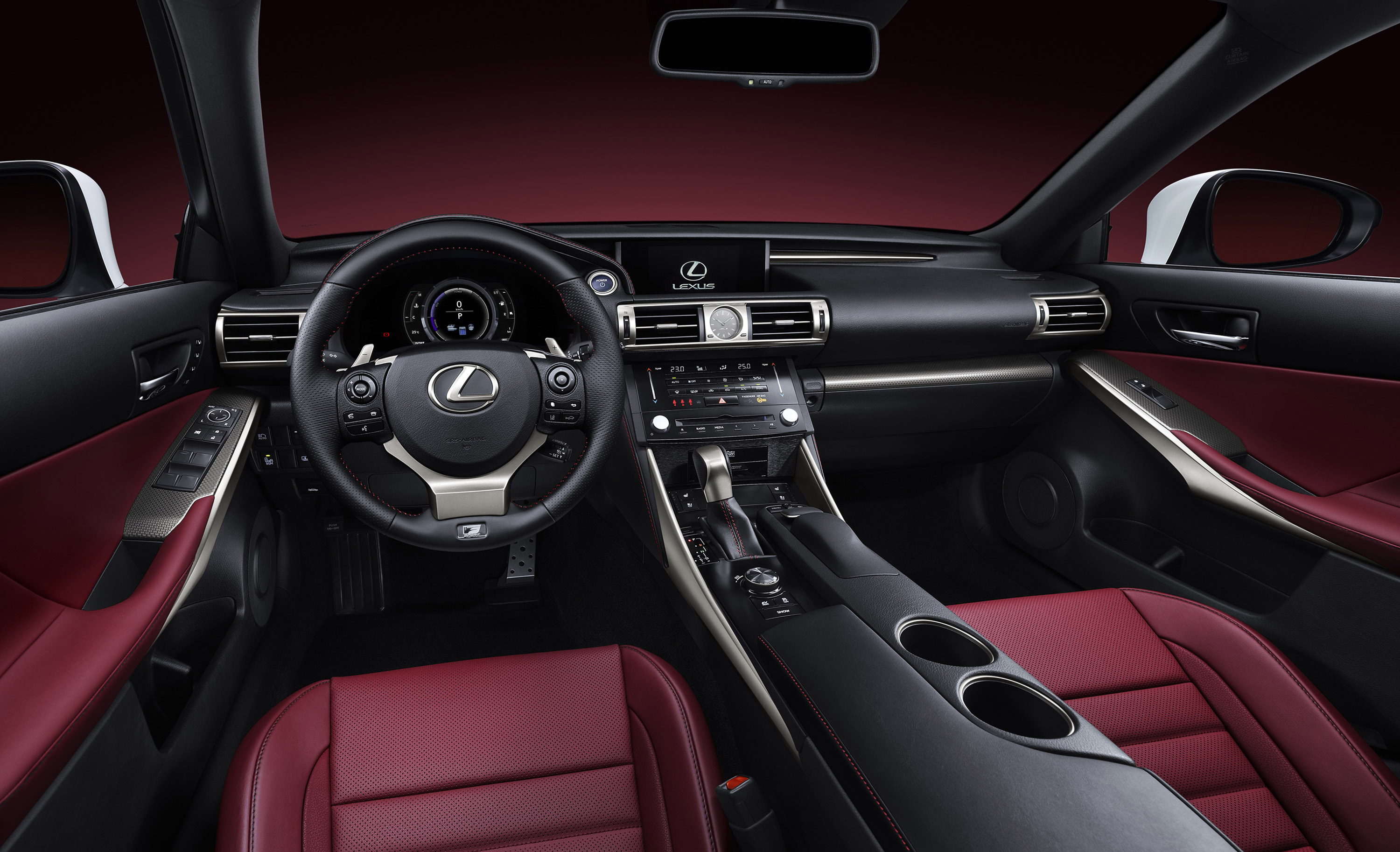

The exclusive new rear-wheel drive models now have longer, wider platform with a 60/40 rear-fold split seat, innovative on-board features and a more rigid body. This is made possible thanks to the new construction techniques that the brand has used for the architecture of the car. The technologically advanced IS models are further complemented by an entirely redesigned interior and exterior, including the Lexus' trademark spindle grille.

In addition, the F Sport models have more rigid platform thus delivering improved driving dynamics. Their steering and chassis is modified via an adaptive variable suspension system teamed to the new drive mode select feature.

What also differentiates the F Sport models are the bespoke interior and exterior styling packages, in which are included the front and rear bumpers, side skirts, grille, wheels and badging.

All of the IS models will also be equipped with wide range of standard equipment, such as pop-up hood, drive mode select, Lexus Remote Touch, tyre pressure warning sensors, eight airbags, satellite navigation, reversing camera, smart entry and start, and heated and ventilated front seats.

What is more, the vehicles now have increased in length of 75 mm. This results in an enhanced rear-seat legroom and greater boot space. The Lexus Enform telematics system on the other hand will provide the driver and occupants with a range of connected services like Enform Concierge (which connects to Lexus Customer Care centre, Drive Care, Lexus Dealers and Destination Assist), Destination Download, Fuel Finder, Local Search and Weather (which offers live search of current and forecast weather conditions for any chosen location.).

IS 250, IS 350 and IS 300h hybrid model will have engines mated to unique transmission (depending on the unit), and for instance the IS 350's one will be matched with an eight-speed transmission.

Under the hood of the 2014 Lexus IS 250 one can find a 2.5-litre all-alloy V6 unit which generates 208 hp (153 kW) and 252 Nm (186 lb-ft) of torque. It is mated to a six-speed sequential transmission with throttle blipping and fast shift capabilities.

Next, the IS 350 models produce 317 hp (233 kW) and 378 Nm (279 lb-ft) thanks to their all-alloy 3.5-litre V6 powerplant matched to a new eight-speed transmission. In addition, this model also benefits from a wider spread of gears and the addition of IS F-style shift logic with quick shift and throttle blipping.

On the other hand, IS 300h's 2.5-litre four cylinder petrol-electric hybrid powerplant generates a combined power output of 223 hp (164 kW), but still manages consuming only 4.9-litres of fuel per 100km, while emitting just 113g of CO2 per kilometre.

The new hybrid powerplant is matched with an electronically controlled continuously variable transmission (E-CVT), offering six-step shift logic and paddle shift. Thanks to the dubbed 'shift-matic', the new transmission reacts more quickly to driver inputs and road conditions to offer greater response and control.

2014 Lexus IS models will be available from mid-July.

IS 300h engine specifications
Engine type 2AR-FSE
Cylinders and arrangement four cylinders, in-line
Valve mechanism 16-valve DOHC with Dual VVT-i
Bore x stroke (mm) 90.0 x 98.0
Displacement (cm³) 2,494
Compression ratio 13.0:1
Fuel injection system EFI, D-4S with direct and port injection
Emission certification** Beyond EURO 6
Fuel type Petrol
Combined max output (petrol electric) kW 164
Max power (petrol only) kW/rpm (electric only) kW 133 / 6000 105
Max torque (petrol only) Nm/rpm (electric only) Nm 221 / 4200 - 5400 300

IS 250, 300h and 350 sedan specifications

Model IS 250 IS 350 IS 300h
Engine 4GR-FSE 2GR-FSE 2AR-FSE
Capacity 2500cc 3456cc 2494cc
Engine type
All-alloy 60-degree V6, 24 valves, double overhead cams (per bank) with dual VVT-i and acoustically controlled variable induction system All-alloy 60-degree V6, 24 valves, double overhead cams (per bank) with dual VVT-i All-alloy Atkinson cycle in-line 4 with double overhead cams, dual VVT-i and cooled EGR
Fuel type 95 RON (ULP) or higher 95 RON (ULP) or higher (Recommended)
Bore x stroke (mm) 83 x 77 94 x 83 90 x 98
Compression ratio 12.0:1 11.8:1 13.0:1
Max. power
Petrol engine 153kW@6400rpm 233kW@6400rpm 133kW@6000rpm
Combined (hybrid) 164kW
Max. torque (petrol only) 252Nm@4800rpm 378Nm@4800rpm 221Nm from 4200 to 5400rpm
Hybrid system
Type Series/parallel, full hybrid
System output 105kW
Torque 300Nm
Electric generator (MG2) AC synchronous, permanent magnet
Voltage (V) 650
High-voltage battery Nickel Metal Hydride (Ni-MH)
Voltage (V) 230.4
Transmission
Type A960 six-speed automatic, electronically controlled with sequential shift AA81E eight-speed SPDS automatic. Electronically controlled with sequential shift, Artificial Intelligence shift control and 2nd to 8th gear torque converter lock-up L210 electronically controlled Continuously Variable Transmission (E-CVT) with sequential shiftmatic system
Gear ratios
First 3.538 4.596 Six-step CVT
Second 2.06 2.724
Third 1.404 1.863
Fourth 1 1.464
Fifth 0.713 1.231
Sixth 0.582 1
Seventh N/A 0.824
Eighth 0.685
Reverse 3.168 4.056
Final drive ratio 3.909:1 3.133:1 2.764:1
Suspension
Type Front Double-wishbone with coil springs and gas-pressurised dampers. Adaptive variable suspension on F Sport and Sports Luxury
Rear Independent multi-link with rear-located toe control arm and separate coil springs and dampers
Driveline
Driven wheels Rear drive Rear drive Rear drive
Brakes
Front 296mm x 28mm ventilated disc 334mm x 30mm ventilated disc 296mm x 28mm ventilated disc
Rear 290mm x 10mm solid disc 310mm x 18mm ventilated disc 290mm x 10mm solid disc
Additional features ABS
Electronic Brake-force Distribution
Brake Assist
Active Traction Control
Vehicle Stability Control
HAC
Steering
Type Road-speed sensitive electric power-assisted steering; VGRS on F Sport and Sports Luxury
Turns lock-to-lock 2.841 (2.580 IS350 with VGRS)
Minimum turning diameter - tyre (m) 10.4
Wheels and tyres
Rims 17x7.5J (Luxury); Front = 18x8J Rear = 18x8.5J (F Sport and Sports Luxury)
Tyres 225/45R17 Bridgestone front and rear on Luxury; 225/40R18 Bridgestone front and 255/35R18 rear on F Sport and Sports Luxury
Body/exterior dimensions
Overall length (mm) 4665
Overall width (mm) 1810
Overall height (mm) 1430
Wheelbase (mm) 2800
Track front (mm) 1535
Track rear (mm) 1550 17'' Tyre/1540 18'' Tyre
Weights/loads
Kerb weight (kg) (Sports Luxury) 1645 1685 1720
Capacities
Fuel tank (L) 66 66 66
Seating Five
Boot Space (L) 480 480 450
Performance
Max. speed (km/h) 225 225 200
0-100 km/h (sec) 8.1 5.9 8.5
Fuel consumption (L/100 km)*
Combined 9.2 9.7 4.9
Urban 12.4 13.7 5
Extra urban 7.3 7.4 5
CO2 emissions (g/km)*
Combined 213 225 113
*Fuel consumption will vary depending on driving conditions/style, vehicle conditions and options/accessories. Source of fuel consumption data: ADR81/02 combined cycle.

Pricing and enhancement packs

ENHANCEMENT PACK
Drivetrain Model Price 1 2 3 ENHANCEMENT PACK SPECIFICATION
IS 250 Luxury $55,900 +$3,500 Moonroof (MR) and parking sensors (F+R)
F Sport $64,900 +$4,000 MR and Mark Levinson audio (MLA)
+$7,000 MR, MLA, Active Cruise Control (ACC) and Pre-Collision Safety System (PCS)
Sports Luxury $77,900
IS 300h Luxury $58,900 +$3,500 MR and parking sensors front and rear
+$10,000 MR, MLA, Lane Departure Warning (LDA), Auto High Beam (AHB), Parking Sensors (F+R), Blind Spot Monitor, Rain Sensing Wipers, Auto Fold Mirrors, Smart Card Key, LED Headlamps, Electric rear Sunshade, Electrochromatic Rear Vision Mirror, Driver Seat Memory
+$14,000 As above plus PCS, ACC and Rear Seat Side Airbag (x2)
F Sport $67,900 +$4,000 MR and Mark Levinson audio (MLA)
+$7,000 MR, MLA, Active Cruise Control (ACC) and Pre-Collision Safety System (PCS)
IS 350 Luxury $65,000 +$2,500 MR
F Sport $73,000 +$2,500 MR
+$7,000 MR, AHB, LDW, PCS and ACC
Sports Luxury $84,000

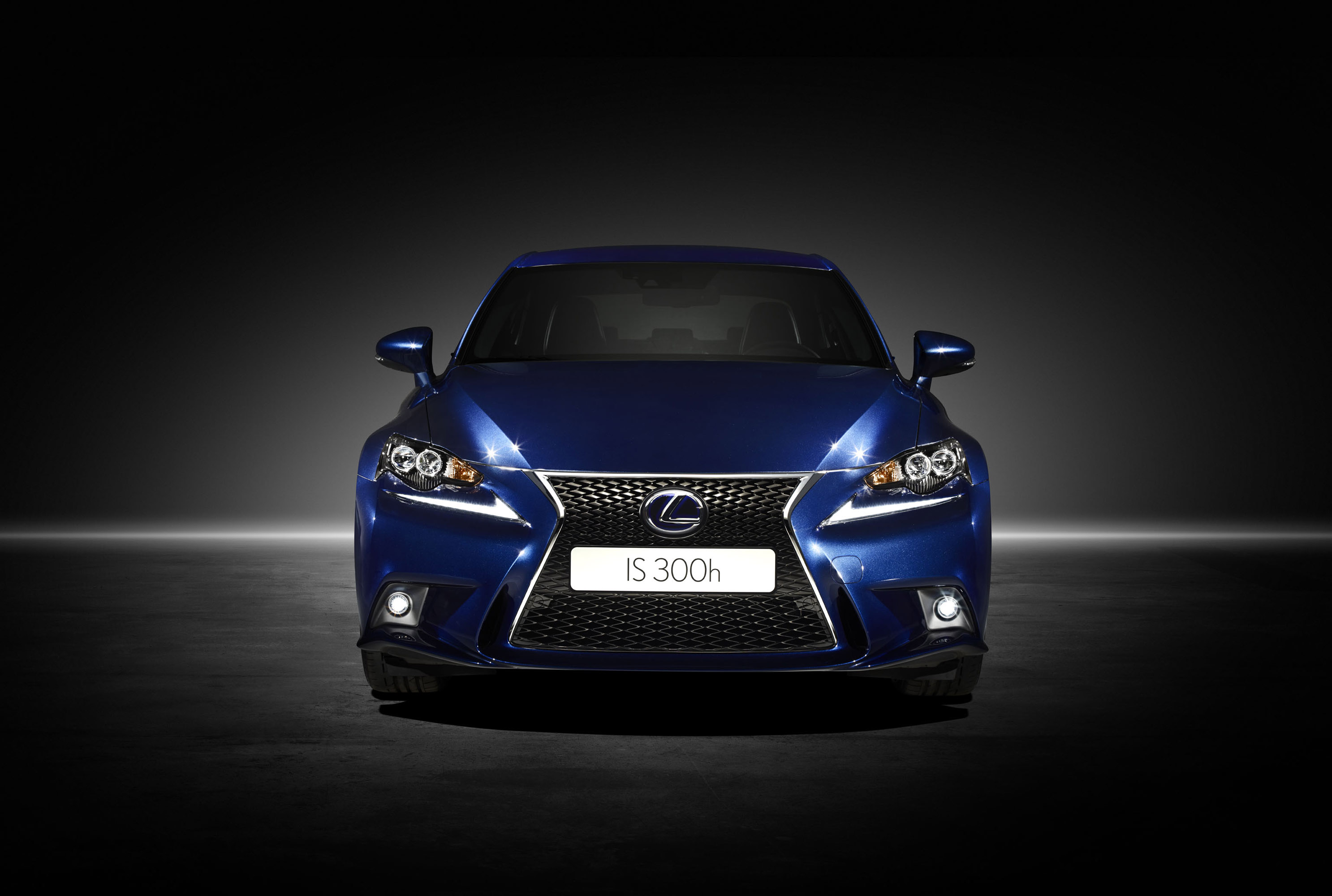

Lexus IS 300h (2014) - picture 1 of 8

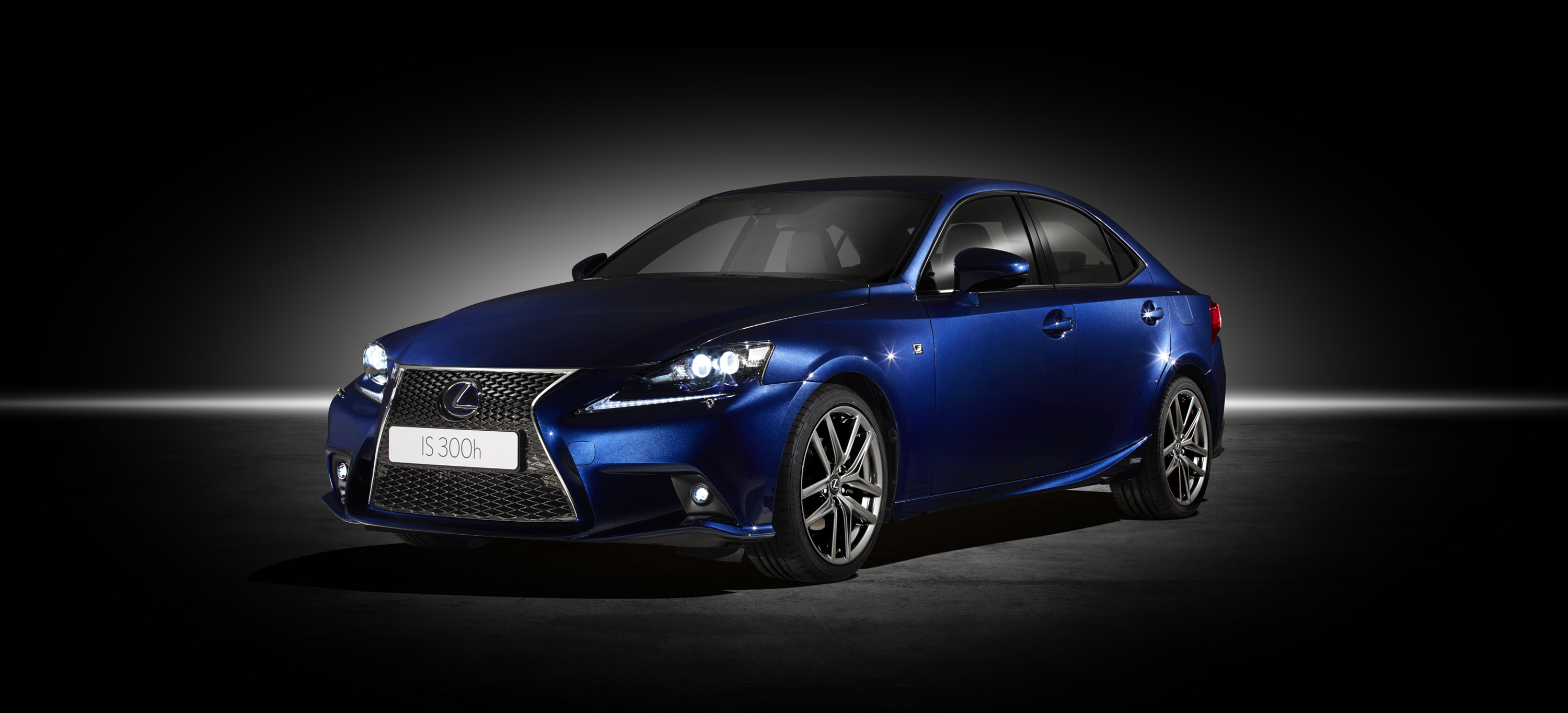

Lexus IS 300h (2014) - picture 2 of 8

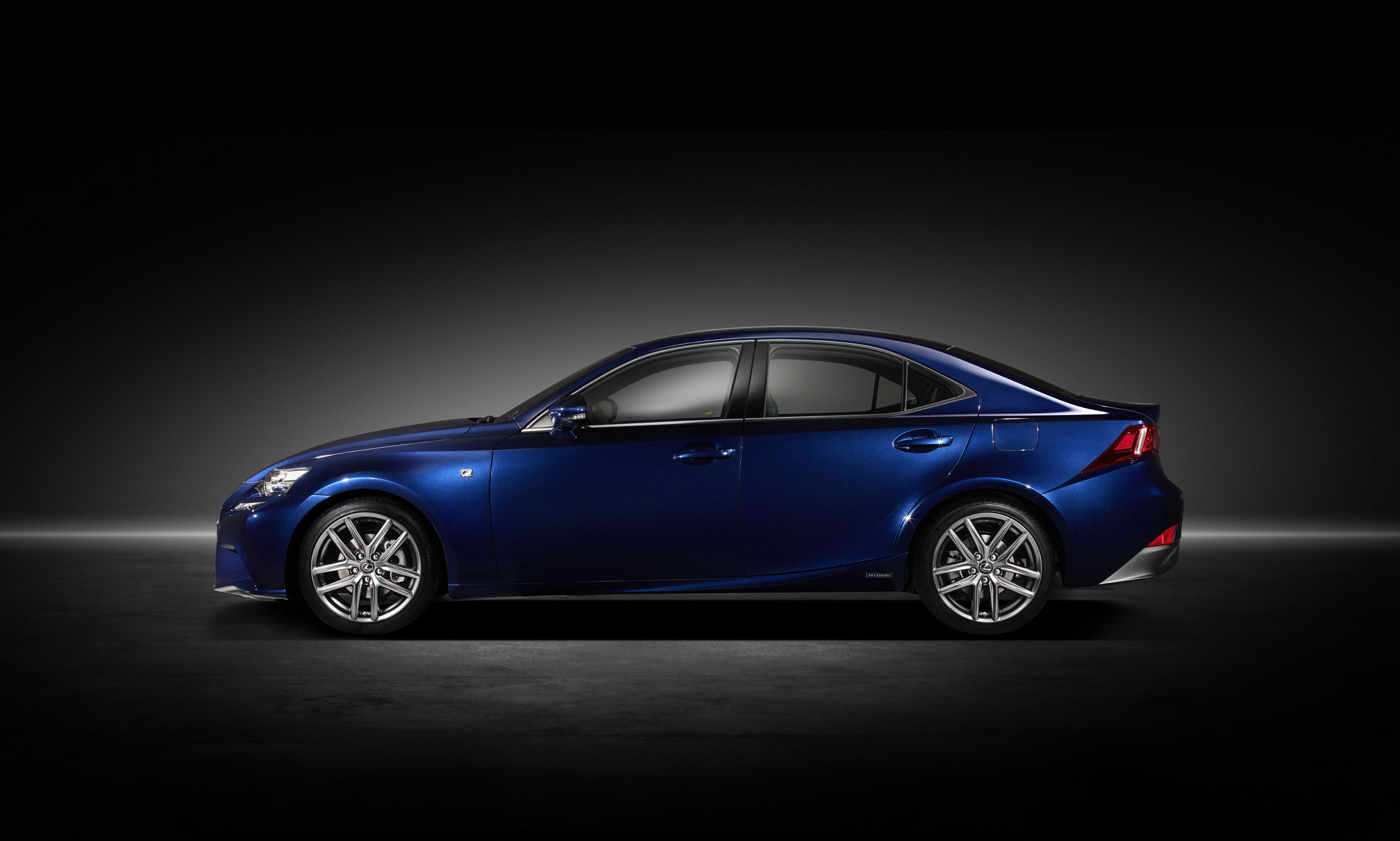

Lexus IS 300h (2014) - picture 3 of 8

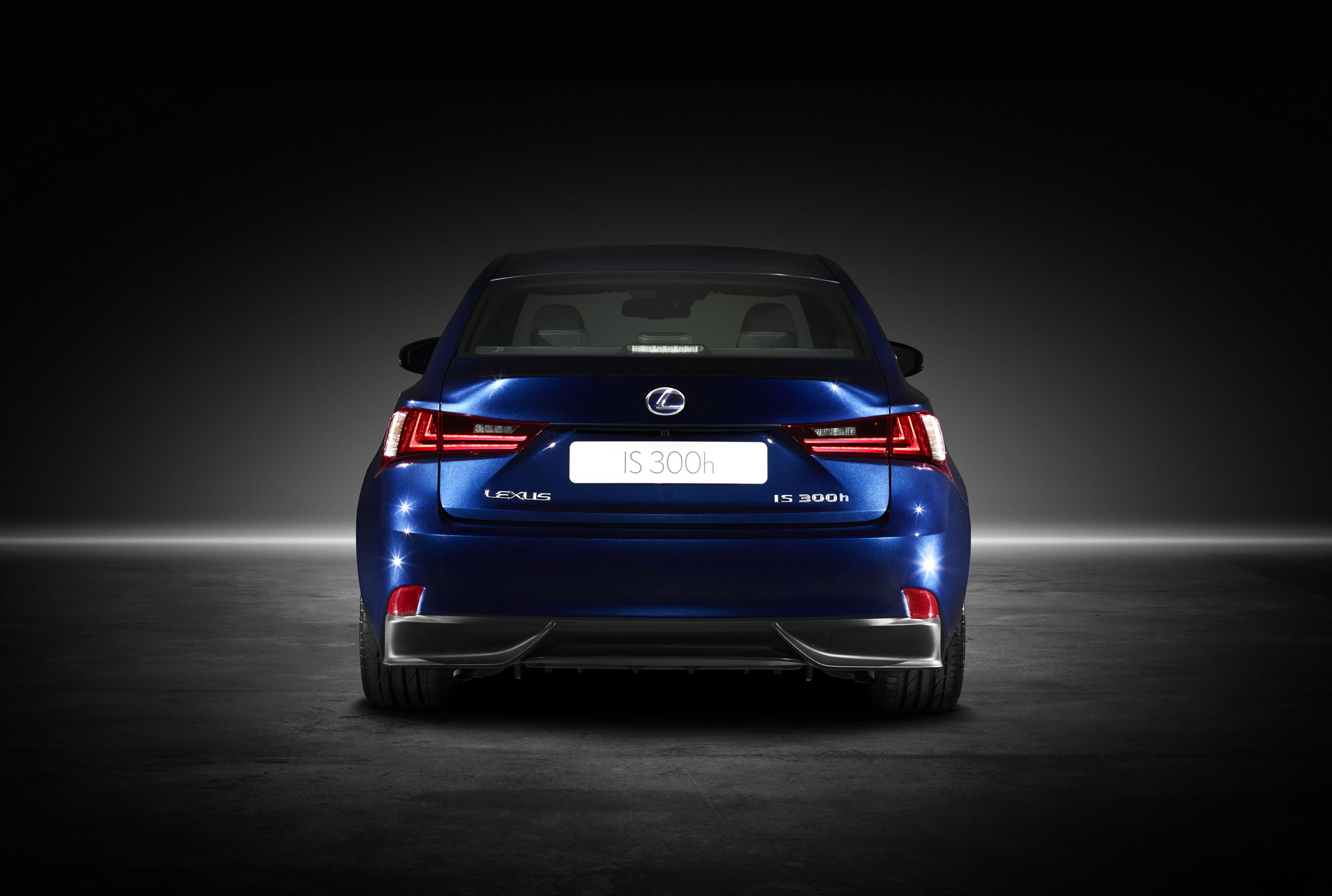

Lexus IS 300h (2014) - picture 4 of 8

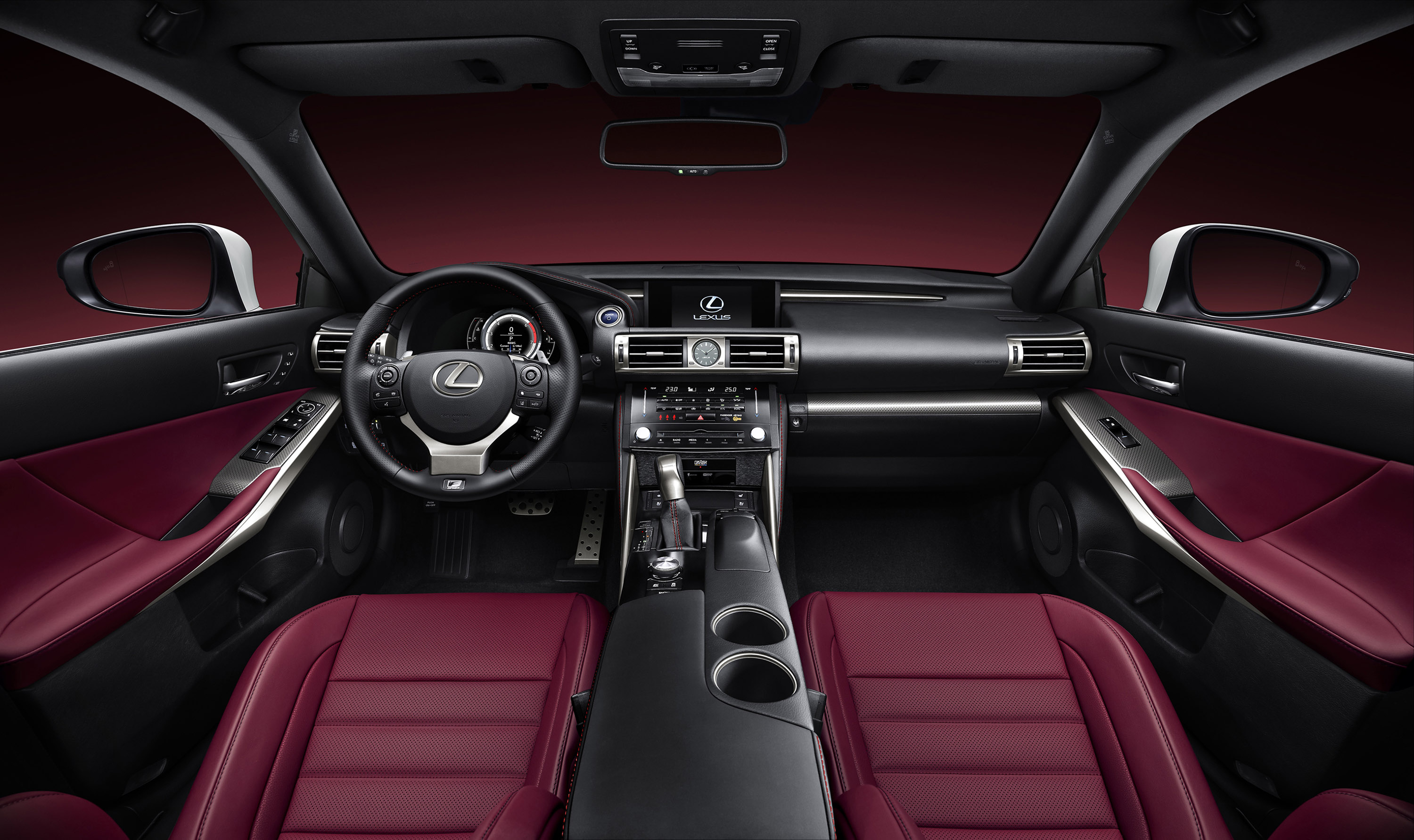

Lexus IS 300h (2014) - picture 5 of 8
Lexus IS 300h (2014) - picture 6 of 8

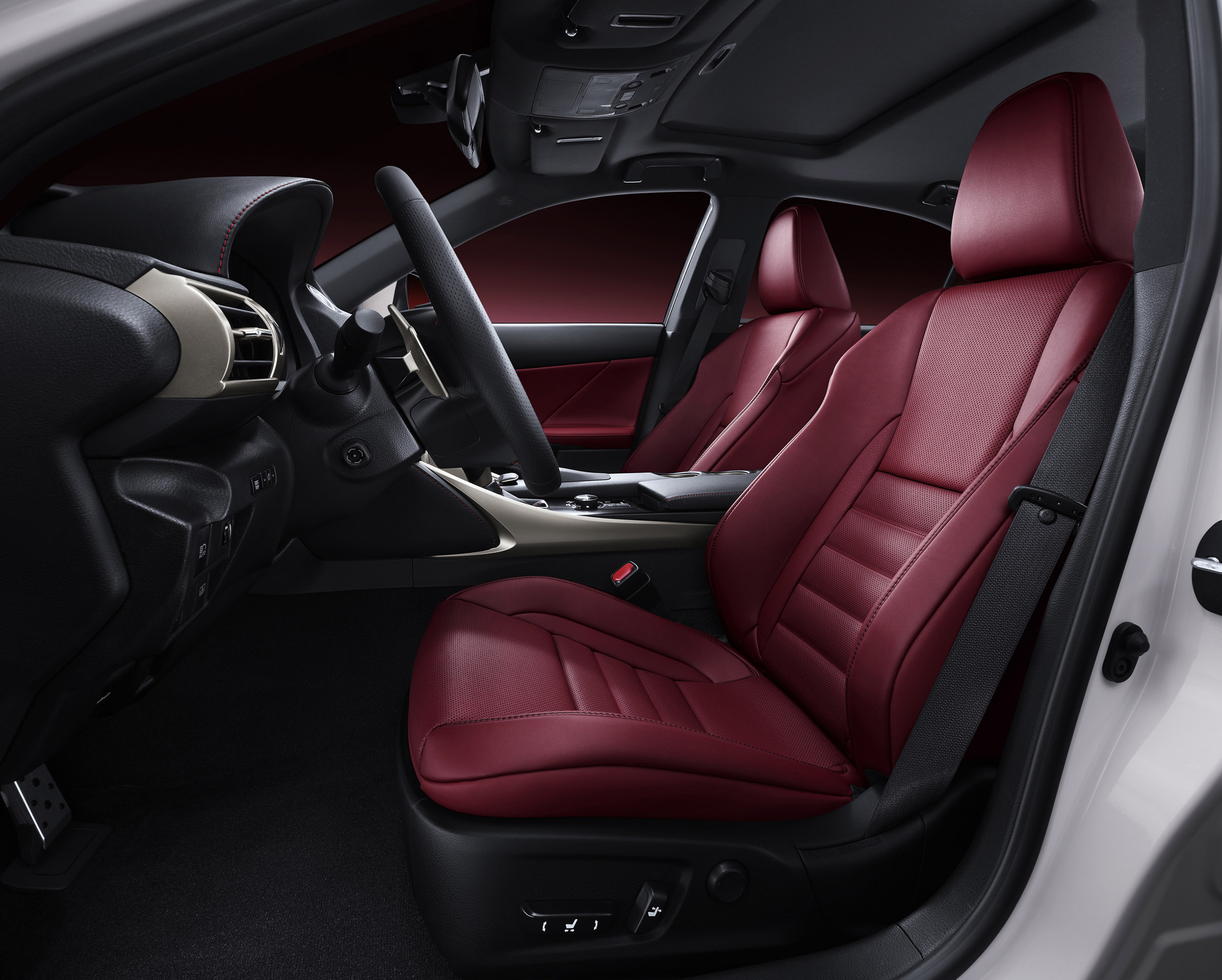

Lexus IS 300h (2014) - picture 7 of 8

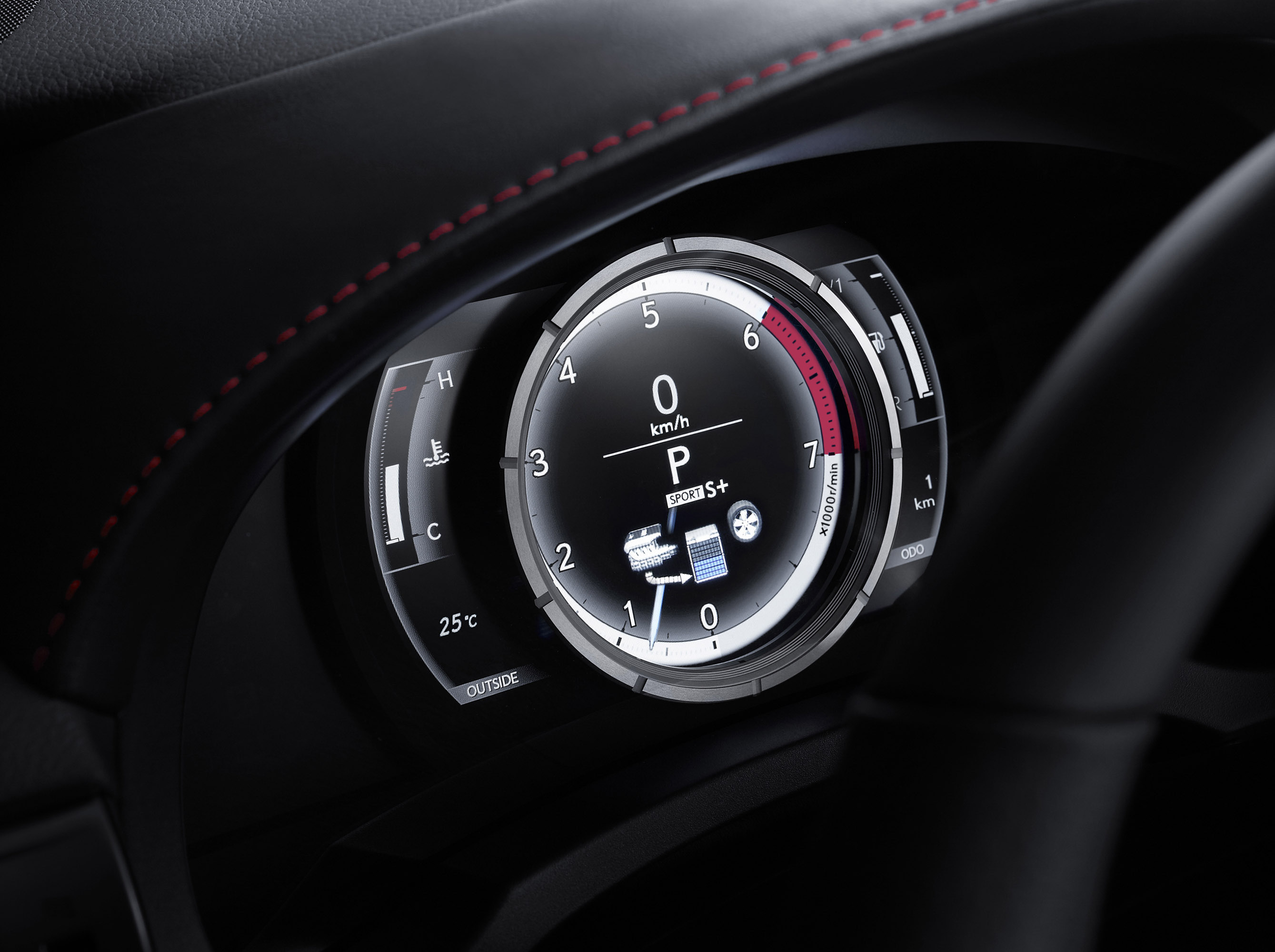

Lexus IS 300h (2014) - picture 8 of 8
