The new Mercedes-Benz CL-Class comes with entirely re-designed V8 biturbo engine of the CL 500 BlueEFFICIENCY model delivering 435hp and returning the incredible 29.7mpg. Its NEDC figures show savings of up to 23 per cent over its predecessor model, CO2 emissions having dropped from 288 g/km to only 224.

The amazing results are achieved thanks to the newly-developed BlueDIRECT technology with third-generation spray-guided direct injection, with the contribution of the specially-designed BlueEFFICIENCY package of the CL 500 BlueEFFICIENCY. The package features energy-efficient control of alternator, fuel pump, air-conditioning compressor and power-assisted steering system, as well as the ECO start/stop function.

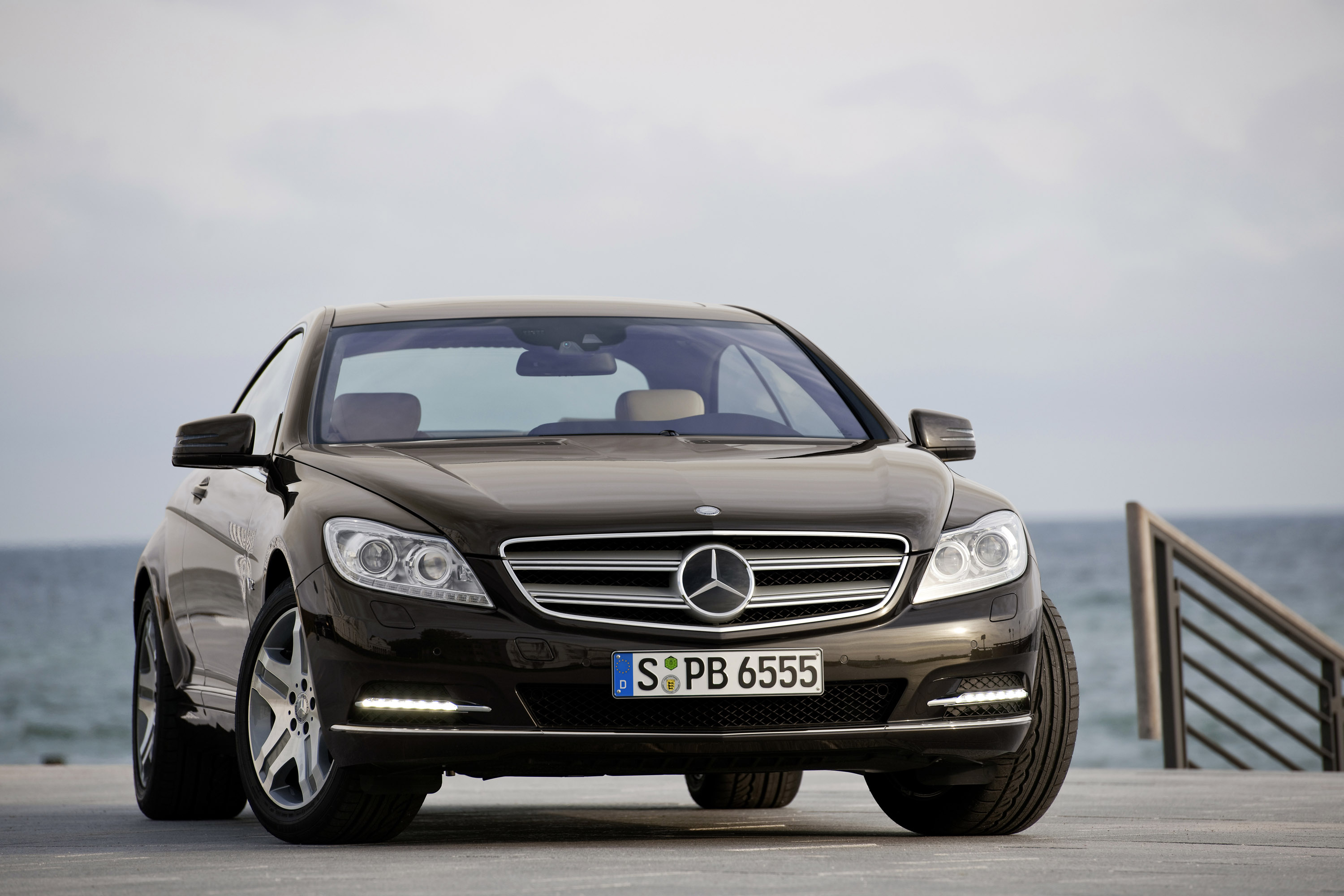

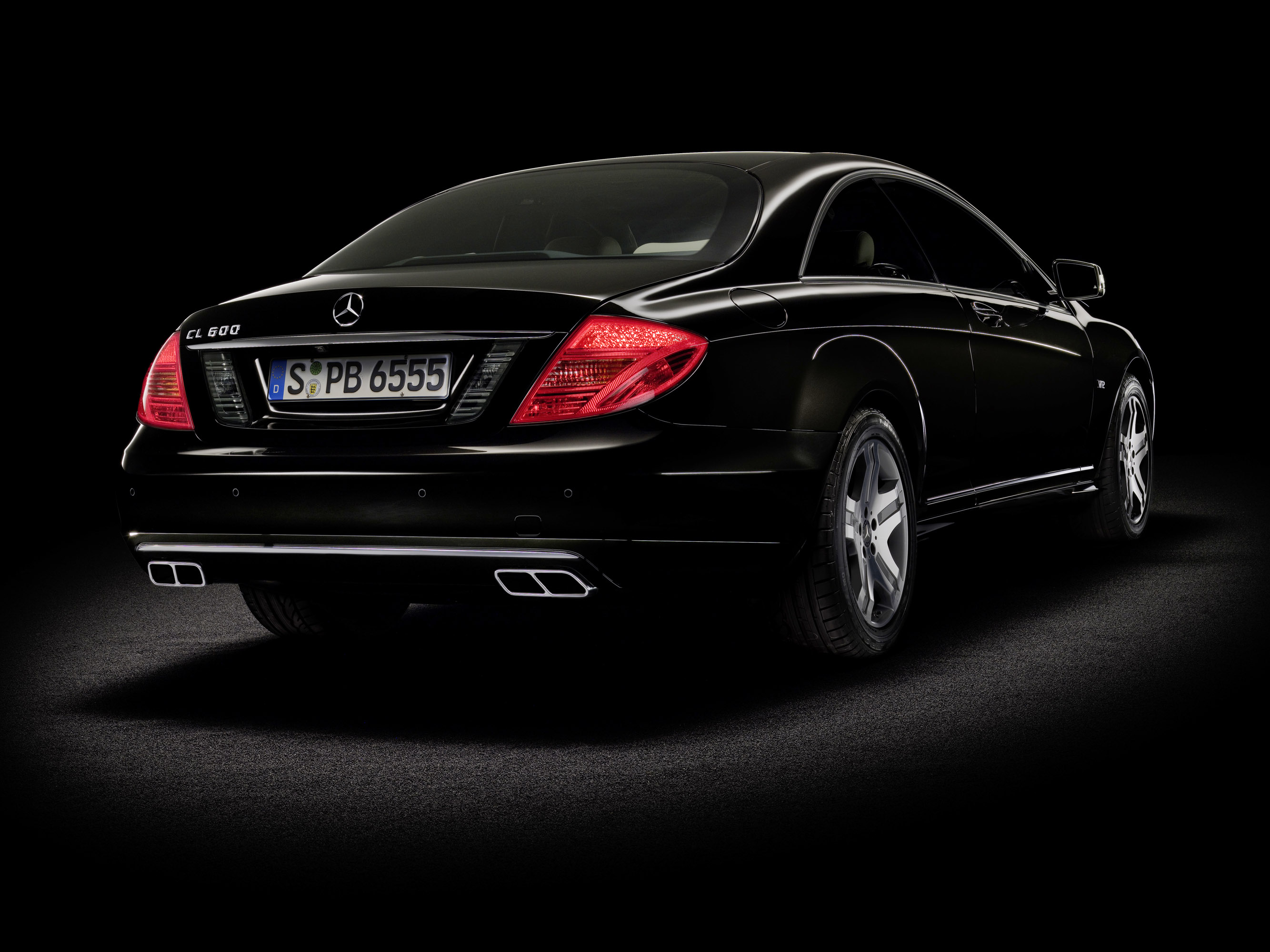

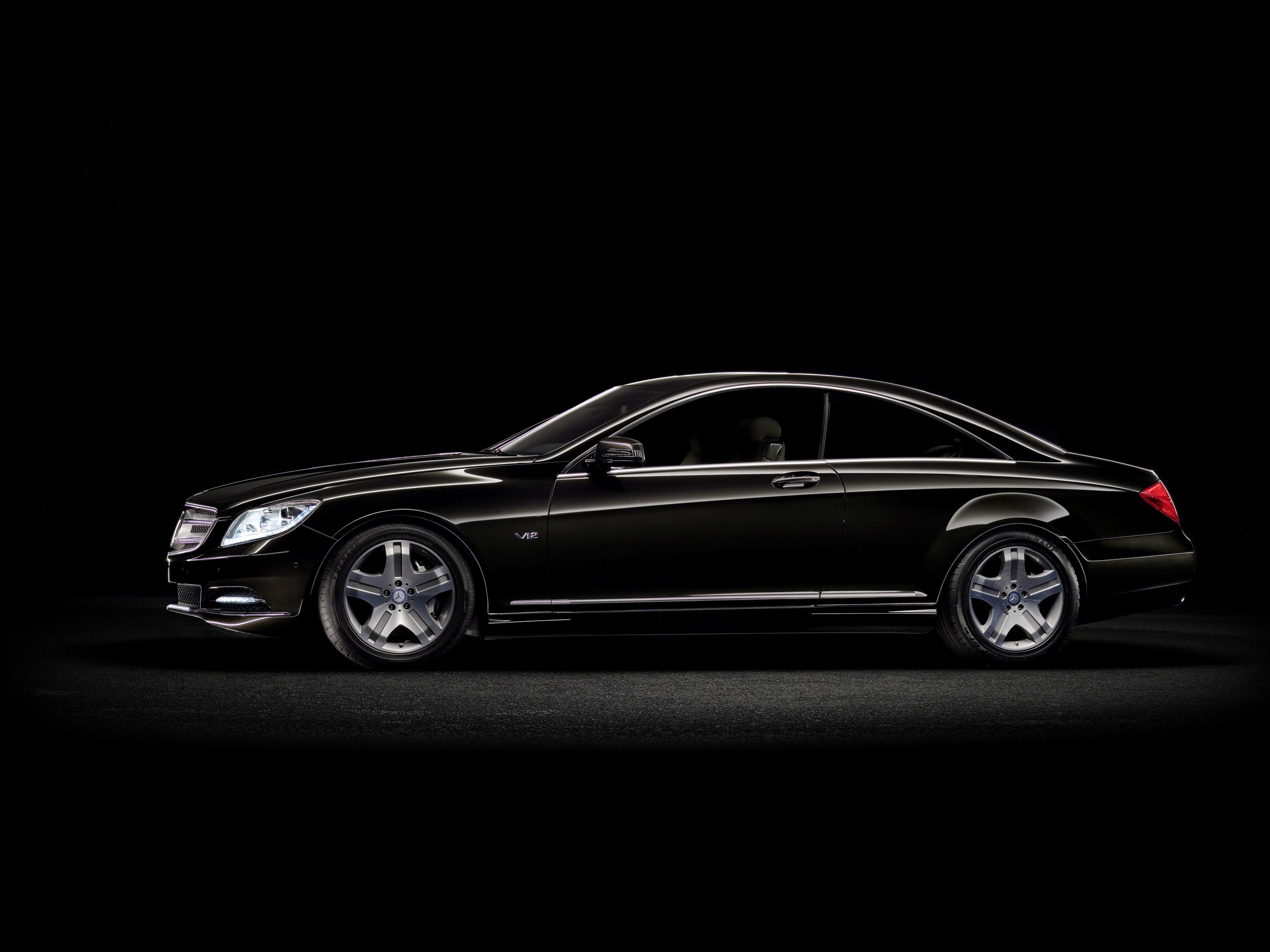

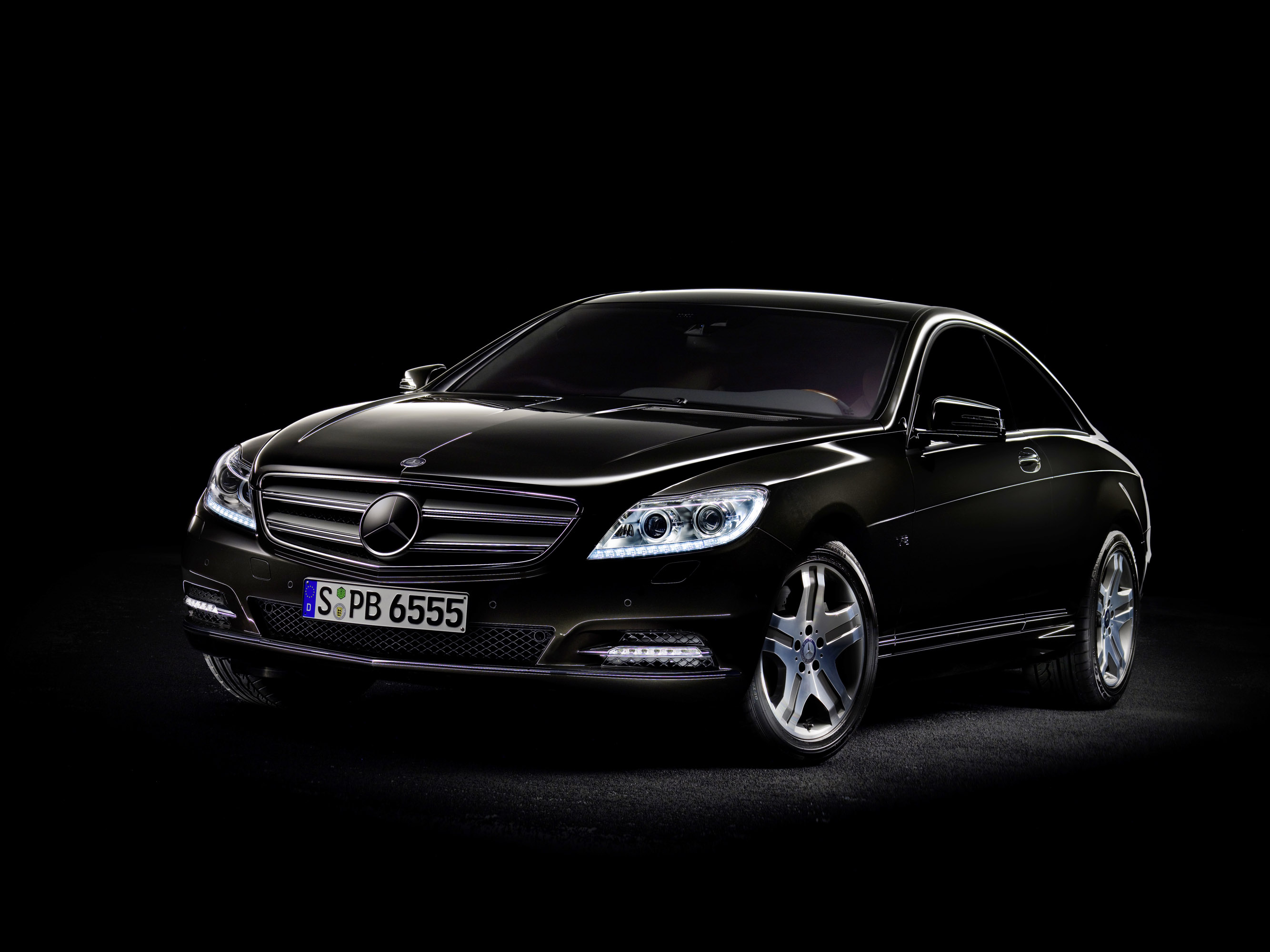

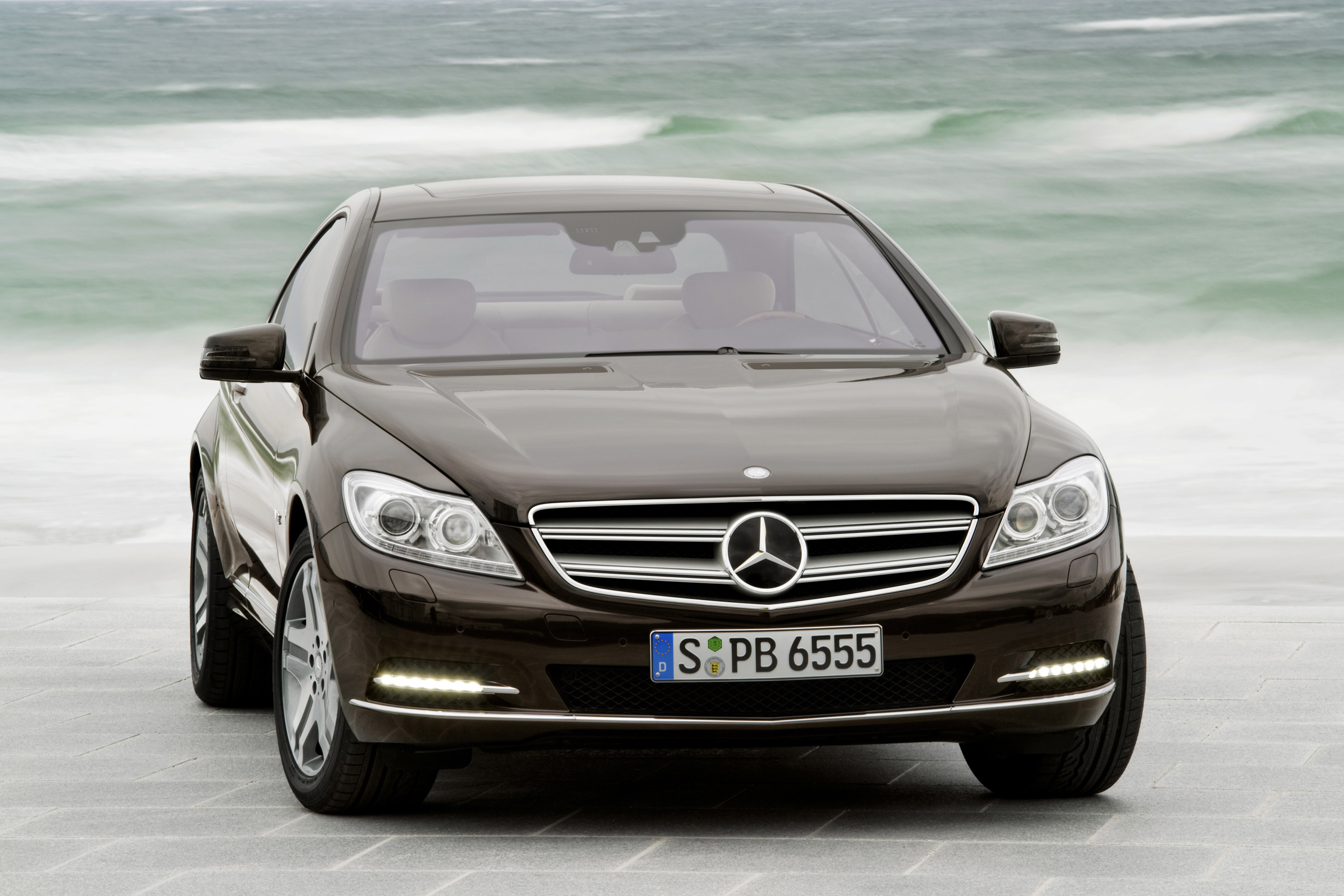

2011 Mercedes-Benz CL-Class, 1 of 28
2011 Mercedes-Benz CL-Class, 2 of 28
2011 Mercedes-Benz CL-Class, 3 of 28
2011 Mercedes-Benz CL-Class, 4 of 28
2011 Mercedes-Benz CL-Class, 5 of 28
2011 Mercedes-Benz CL-Class, 6 of 28
2011 Mercedes-Benz CL-Class, 7 of 28
2011 Mercedes-Benz CL-Class, 8 of 28
2011 Mercedes-Benz CL-Class, 9 of 28
2011 Mercedes-Benz CL-Class, 10 of 28
2011 Mercedes-Benz CL-Class, 11 of 28
2011 Mercedes-Benz CL-Class, 12 of 28
2011 Mercedes-Benz CL-Class, 13 of 28
2011 Mercedes-Benz CL-Class, 14 of 28
2011 Mercedes-Benz CL-Class, 15 of 28
2011 Mercedes-Benz CL-Class, 16 of 28
2011 Mercedes-Benz CL-Class, 17 of 28
2011 Mercedes-Benz CL-Class, 18 of 28
2011 Mercedes-Benz CL-Class, 19 of 28
2011 Mercedes-Benz CL-Class, 20 of 28
2011 Mercedes-Benz CL-Class, 21 of 28
2011 Mercedes-Benz CL-Class, 22 of 28
2011 Mercedes-Benz CL-Class, 23 of 28
2011 Mercedes-Benz CL-Class, 24 of 28
2011 Mercedes-Benz CL-Class, 25 of 28
2011 Mercedes-Benz CL-Class, 26 of 28
2011 Mercedes-Benz CL-Class, 27 of 28
2011 Mercedes-Benz CL-Class, 28 of 28

"The CL is the ideal ambassador for our brand. It combines in a particular degree those things that characterise Mercedes-Benz: fascination, perfection and responsibility. And with the new generation we have gone a step further, too – especially in the realm of efficiency. But in terms of design, safety, comfort and output, too – the CL shows the way forward: simply follow Mercedes", commented Dr Dieter Zetsche, Chairman of the Board of Management of Daimler AG.

The new CL features cutting edge technologies like the Active Lane Assist and Active Blind Spot Assist systems. The modified Active Body Control (ABC) with crosswind stabilisation system and the Direct-Steer system also contribute to enhancing safety and driving enjoyment.

Outside the new CL-Class is a typical luxury coupe featuring the terse profile of the bonnet, the dynamic V-shape radiator grille and the curving headlamps – design details that discreetly but effectively emphasise the car's elegant yet powerful lines. The front bumper now has three air intake openings and a chrome trim strip. Of course, the LED daylights present the side openings for the brake cooling air.

The ILS (Intelligent Light System) and AHA (Adaptive Highbeam Assist) come as a standard.  The headlamps offer state-of-the-art illumination technology and the latest LED technology in the turn indicators and position marker lamps rounds off the car's advanced image. The rear of the vehicle is characterised by the newly-designed tail lamps.

2011 CL-Class comes with an astonishing power unit under the hood - a new 4.7 liter V8 Bi-turbo engine with BlueDIRECT technology developing 435hp and 700 Nm of torque. The combined fuel consumption is 29.73 mpg. From 0 to 62 mph, the car accelerates in 4.9 seconds and the top speed is limited to 250km/h.

The CL 600 model offered in the UK blasts 517hp from its 12 cylinder Bi-turbo engine. The sprint to 100km/h is covered in 4.6 seconds and now also complies with the Euro 5 emissions control standards.

CL-Class features ALKA (Active Lane Keeping Assist) , which makes the the steering wheel to vibrate briefly, if the vehicle threatens to cross a continuous lane marking line. The Active Lane Keeping Assist avails itself of the ESP® Electronic Stability Program.

Other active system is the BSA (Blind Spot Assist), which that makes use of a multi-stage warning concept. If it detects that a change of lane would be too dangerous, it warns the driver by displaying a red triangle in the glass of the exterior mirror.

Furthermore, the 2011 CL-Class features AMBA (Adaptive Main Beam Assist) comming as standard. This camera-based system can recognise oncoming vehicles or vehicles ahead with their lights on, and then controls the headlamps to ensure the best possible beam range without dazzling other road users. In addition, Mercedes-Benz offers the NVA (Night View Assist PLUS) system for the CL-Class, featuring a special infra-red camera for pedestrian detection: as soon as the system detects pedestrians on the road ahead, these are highlighted additionally in the display, in order to catch the driver's attention better.

It seems that the technologies in the CL are endless – the SLA (Speed Limit Assist), which recognises speed limit signs in passing and shows the relevant speed limit in the central display and on the navigation system's map display.

For the new-generation CL-Class, Mercedes-Benz has also improved the long and medium-range radar used by BAS PLUS (Brake Assist ) and DISTRONIC PLUS proximity cruise control.

The PRE-SAFE® Brake comes with the driver assistance package. If the driver is distracted and fails to recognise the imminent danger of a rear-end collision or the warning signal of an assistance system, this system can intervene and brake the vehicle independently. If the driver fails to react even after automatic, partial braking action, this most recent development stage of the PRE-SAFE® Brake activates the maximum braking pressure around 0.6 seconds before what it now recognises as an unavoidable collision -- an emergency braking action that can significantly mitigate the severity of the impact. The PRE-SAFE® Brake thus acts as a kind of "electronic crumple zone".

ATTENTION ASSIST system which forms part of the standard equipment of the new generation CL-Class. As the vehicle is being driven, the system continuously evaluates more than 70 different parameters in order to identify driver drowsiness and provide a warning before the dangerous microsleep phase begins. Observing the driver's steering behaviour has proved to be a particularly strong indicator: several years of practical research by Mercedes-Benz have shown that drowsy drivers make minor steering errors which they often correct very rapidly in a characteristic way. This steering behaviour is recognised by a special steering angle sensor. Observing the driver's eyes cannot always provide conclusive evidence of sleep since many drivers can experience micro-sleep with their eyes open.

Active Body Control is probably one of the most useful systems – it reduces the effect of a crosswind.

Thanks to Direct-Steer, with a steering ratio that varies with the steering angle, and modified Active Body Control (ABC) with crosswind stabilisation (standard for CL 500 BlueEFFICIENCY and CL 600). This latest stage in active body development modifies the wheel load distribution via the ABC spring struts within milliseconds, depending on crosswind direction and intensity, to the extent that it can largely compensate the effects of the crosswind. The results: improved stability, reducing fuel consumption, better handling and comfort.

Additional safety and agility at the physical limits is provided by the standard-fit Torque Vectoring Brake in the new-generation CL-Class – targeted, one-sided braking intervention at the inside rear wheel when cornering. This enables the luxury coupé to turn into the bend under precise control with even greater agility.

2011 Mercedes-Benz CL-Class features a SPLITVIEW technology for the COMAND control and display system centrally located in the centre console. This innovative display concept allows the driver and front passenger to view different contents simultaneously on one and the same screen. While the driver e.g. uses the map-based navigation system, the front passenger can be watching a film on DVD.

The standard COMAND control and display system with Bluetooth®, USB and SD card interfaces offers customers the possibility of exporting their stored data to other vehicles and multimedia devices. It is also possible to transfer and update navigation data. In the glove compartment Mercedes-Benz also integrates a Media Interface as standard – the interface is for mobile audio and video devices – devices such as the iPod® and every other possible customer device.

COMAND also includes full navigation system stored on a 40GB hard drive. For musical entertainment COMAND provides a radio, a CD/DVD player with MP3 function, an equalizer with speed-dependent volume control and the MUSIC REGISTER with a 7.2 GB hard disc which stores around 2500 digital music files in MP3, AAC or WMA format. The system recognises music files played on CD, DVD or from the MUSIC REGISTER using its stored Gracenote® database, and shows the title, album and performer in the colour display. Another new function, Music Search, enables CL-Class drivers and passengers to search SD memory cards, USB sticks, CDs and DVDs for specific music titles and performers.

The sound of quality is entrusted to the Discrete Logic7® system, which is developed by Mercedes-Benz together with audio specialists Harman Kardon® delivering an outstanding performance with three-dimensional sound as a natural 360-degree musical experience for all passengers of the CL-Class. Mercedes-Benz offers the surround sound system together with SPLITVIEW and a six-disc DVD changer as part of the Entertainment Package (standard for CL 600).

Inside the 2011 CL boasts four different kinds of fine wood. Most of the wood parts are hand-made and matched individually for colour and grain by experienced craftsmen.

The seat covers of the new CL-Class are of the most exquisite quality. For this luxury model there are two different kinds of leather available which thanks to their low pre-tensioning and consequent wrinkle effect appear supple and comfortable from the very first glance. There is a choice of five tasteful colour combinations for the vehicle interior: black/black, savannah beige/cashmere beige, sahara beige/black, and the novel combinations alpaca grey/basalt grey and aubergine/black.

The multi steering wheel is also modified by the designers: in future the rim and airbag module are lined with soft nappa leather as standard. The new, flatter airbag module also lends a sporty touch to the multifunction steering wheel covered in leather sewn with sophisticated double stitching.

In future customers who specify the optional ambient lighting (standard for CL 600) have a choice between three lighting moods: solar (amber), neutral (white) and polar (ice blue).

CL-Class standard equipment:

  • Active Body Control with crosswind stabilisation
  • Adaptive driver and front-passenger airbags
  • Adaptive Highbeam Assist
  • Adaptive brake lights
  • Anti-lock braking system (ABS)
  • ATTENTION ASSIST
  • 7G-TRONIC automatic transmission (CL 500 BlueEFFICIENCY)
  • Automatic steering wheel adjustment for entry and exit
  • Bluetooth®, SD, USB, AUX-IN audio and video interface
  • Brake Assist (BAS)
  • ADAPTIVE BRAKE
  • AMG Sports Package
  • COMAND system with CD/DVD player, SD card slot, USB interface and Gracenote® data base
  • DIRECT SELECT gearshift
  • Direct-Steer system
  • ECOstart/stop function (CL 500 BlueEFFICIENCY)
  • ESP® with acceleration skid control (ASR)
  • Headlamp assist
  • Electric parking brake
  • Belt tensioners on all seats
  • Intelligent Light System with country light, motorway mode, extended fog light function, active light function and cornering light function
  • Leather upholstery
  • 18-inch light-alloy wheels
  • Memory package for seats, steering wheel and exterior mirrors
  • Metallic paintwork
  • Nappa leather multifunction steering wheel
  • PARKTRONIC with Parking Guidance
  • PRE-SAFE®
  • Rain sensor with two sensitivity levels
  • Tyre pressure loss warning system
  • Tilting/sliding glass sunroof, electric, with PRE-SAFE® function
  • Door power closing
  • Front and rear seatbelts with automatic comfort-fit feature
  • Sidebags front and rear
  • Heated front seats
  • LED daytime running lamps integrated in bumper
  • Telephone keypad
  • Cruise control
  • Doorhold
  • Four-zone automatic climate control
  • Front seats with electric fore/aft and height adjustment with lumbar support and PRE-SAFE® positioning function
  • Tinted, sound-insulating, infrared-reflecting laminated glass all round
  • Windowbags

Equipment packages

  • In the Driving Assistance package PLUS Mercedes-Benz mainly combines systems that can actively help to prevent rear-end collisions: the radar-based proximity cruise control system DISTRONIC PLUS, Brake Assist PLUS and the PRE-SAFE® Brake. This equipment package also includes Active Lane Keeping Assist and Active Blind Spot Assist.
  • An exclusive audio experience and optimum video entertainment for the front passenger is provided by the Front Seat Entertainment package. It includes the SPLITVIEW display, the 6-disc DVD changer and the Harman Kardon® Discrete Logic 7® surround sound system with headphones and remote control (standard for CL 600).

2011 Mercedes-Benz CL 600

Mercedes-Benz stylishly underlines the exceptional status of the twelve-cylinder CL 600 with numerous distinguishing features in the exterior and interior. In addition to the model-specific radiator grille with two twin louvres, these include the V12 emblem on the flanks, model-specific, five-spoke 18-inch light-alloy wheels in a bi-colour look and a large range of standard option packages. Standard ex-factory specifications include:

  • Navigation package
  • Front Seat Entertainment package
  • Reversing camera
  • KEYLESS-GO
  • Convenience telephony
  • Anti-Theft Protection package

The front active multicontour seats and the rear seats are upholstered with particularly supple "PASSION" leather, decorated with a special V12 fluting pattern, as is the Alcantara roof liner. Among other things, the upper and lower sections of the dashboard, the door centre panels, rear shelf and ruffled pockets on driver and front passenger backrest are covered in this high-quality leather. Apart from the roof liner, the interior trim of the A, B and C pillars is also clothed in Alcantara leather. Luxury head restraints at front and rear bearing the V12 emblem also enhance travelling enjoyment. The V12 symbol on the backrests makes reference to the exclusive character of the vehicle. On entry, the V12 emblem lights up in the instrument cluster. Trim elements in fine high-gloss brown poplar wood, chrome-plated door sills and boot sill, together with the standard ambient lighting, round off the serene character of the Mercedes-Benz CL 600.

designo and designo Selection: individual and exclusive

For further individualisation, customers can now also choose from a restructured range of designo features for the CL-Class, which further underscore the exclusive hand-finish character of the luxury model. Ten different designo paint finishes can be combined with ten designo aniline leather interiors and four natural leather interiors – with practically no limitations on personal taste. For designo wood trim, customers have a choice between natural-grain maple and natural-grain matt oak. Trim in black piano lacquer and champagne white piano lacquer can also be ordered.

Two kinds of fine authentic granite trim are available for the CL-Class: Labrador blue pearl and Star Galaxy black. These trim elements are made by cutting 0.6 to 0.8 mm thin stone wafers which are then coated with an adhesive layer to ensure that every grain remains exactly where it is. These thin plates are then ground between two rollers. The result is a visually undisturbed, extremely thin stone sheet, pliable thanks to the adhesive layer applied, which enables it to be moulded around narrow edges, too.

With designo Selection, Mercedes-Benz is offering a special, high-end package of designo features for the CL-Class. Customers can configure their car according to their personal preferences and taste from the different designo aniline leather upholstery, wood trim elements and paint work available. The highlight is designo lettering in solid 18-carat gold on the rear air conditioning unit cover. This is exclusive to the designo Selection. The designo wood/leather steering wheel and the designo roof liner in black nappa leather or Alcantara in cashmere beige, anthracite or alpaca grey round off the refined atmosphere of the car's interior.

AMG Sports package

The AMG Sports package with AMG bodystyling and AMG light-alloy wheels gives the luxurious two-door car an even more dynamic look. At the front the newly-designed front apron ensures an imposing, muscular appearance. Its distinguishing feature is a tapered air intake with a wider lower edge. The side skirts continue the design of the front bumper, with striking contours that find an echo in the rear apron. The independent rear bumper with a black insert is the perfect finishing touch.

Further highlights include the 19-inch AMG 5-spoke light-alloy wheels painted in sterling silver. With their broad format 255/40 (front) and 275/40 (rear), not only do they fill the wheel houses perfectly, lending the CL-Class an exceptionally dynamic presence, but also enhance its handling characteristics even more. In addition, silver-colour painted brake callipers with Mercedes-Benz lettering on the front axle wheels emphasise its sporty appearance. The CL 500 BlueEFFICIENCY with AMG Sports package is fitted with 255/40 R 19 tyres on both front and rear axles. Optionally, 20-inch AMG light-alloy wheels in twin-spoke design with tyre sizes 255/35 and 275/35 are also available.

Wood trim and the wood/leather steering wheel in black ash give the high-quality vehicle interior a very special feel. The standard AMG Sports package also includes sports pedals in brushed stainless steel with black rubber studs and velour floor mats with AMG lettering.

Technical data :

Driver assistance systems


Intelligent Light System: This innovative headlamp technology provides five lighting functions which are activated depending on the driving and weather conditions.

Standard***

Cornering lights: This light function provides heightened safety at junctions and when driving slowly in tight bends (a component of the Intelligent Light System).

Standard***

Active Light System: the Intelligent Light System's bi-xenon headlamps follow the driver's steering movements (a component of the Intelligent Light System).

Standard***

Motorway mode: from 90 km/h the entire width of the carriageway is illuminated, improving the driver's range of vision by around 50 metres (a component of the Intelligent Light System).

Standard

Enhanced foglamps: This function pivots the offside headlamp outwards to illuminate the road verge more effectively (a component of the Intelligent Light System).

Standard***

Country mode: this function replaces the previous low-beam headlamps and provides broader and brighter illumination of the opposite road verge (a component of the Intelligent Light System).

Standard***

Adaptive Highbeam Assist: this system switches between high beam and low beam and adjusts the range of the headlamps in accordance with the distance to oncoming vehicles/vehicles travelling ahead.

Standard

Night View Assist Plus: the display in the dashboard shows a realistic grey-scale image from an infrared camera that monitors the road ahead of the CL-Class. Any pedestrians detected are additionally highlighted in the display.

Optional


Active Lane Keeping Assist: a camera behind the windscreen recognises continuous carriageway markings and gives a warning if the car unintentionally leaves its lane. If the driver fails to react, the system intervenes via ESP®, braking one or more wheels if the vehicle crosses a continuous lane marking line, in order to prevent it straying from the lane.

Optional aspart of theDriving Assistance package PLUS

Active Blind Spot Assist: this radar-based system warns the driver before a lane-change if it detects another vehicle in the exterior mirror's blind spot. If the driver fails to react to the warning, ESP® triggers a targeted braking intervention in order to counteract the course which would lead to a collision with the vehicle at the side.

Optional aspart of theDriving Assistance package PLUS***

Brake Assist PLUS: this system uses radar sensors to recognise an impending rear-end collision, calculates the necessary degree of braking assistance and makes it available immediately when the driver depresses the brake pedal.

Optional aspart of theDriving Assistance package PLUS***

DISTRONIC PLUS: this radar-based proximity control system automatically helps the driver to maintain a set distance from the vehicle ahead. It can brake the CL-Class to a standstill if necessary, then accelerate again. If the distance to the vehicle ahead decreases too quickly, the system gives the driver visual and audible warnings.

Optional aspart of theDriving Assistance package PLUS

PRE-SAFE® Brake: if there is imminent danger of a rear-end collision, this system brakes the CL-Class automatically if the driver fails to react and the collision is unavoidable.

Optional aspart of theDriving Assistance package PLUS

PRE-SAFE®:if the system recognises a critical driving situation, it takes precautionary measures to protect the occupants. It can e.g. initiate tensioning of the front seat belts, or closing of the side windows and sliding sunroof.

Standard


Chassis, steering and brakes:


Active Body Control (ABC): active suspension system that adapts the springs to the current driving situation within fractions of a second and is able to largely compensate for the effects of crosswinds.

Standard**

AIRMATIC:the air suspension works together with an electronically controlled damping system.

Standard for CL 500 BlueEFFICIENCY

ADAPTIVE BRAKE: this Mercedes brake system offers assistance functions, such as a HOLD function and Hill Start Assist, for even greater safety and comfort.

Standard

Torque Vectoring Brake: by specifically braking the rear wheels, ESP® ensures more safety at the physical limits without any loss of agility.

Standard

Direct-Steer:a variable steering rack ratio depending on the steering angle allows more agile handling and provides more comfort when parking and manoeuvring at slow speed.

Standard

DIRECT SELECT: the 7-speed automatic transmission (CL 500 BlueEFFICENCY and CL 500 4MATIC BlueEFFICIENCY) and the 5-speed automatic transmission (CL 600) are operated electronically via a lever on the steering column.

Standard

BlueEFFICIENCY measures:


ECO start/stop function: In order to reduce fuel consumption, in the eight-cylinder models the engine is switched off automatically as soon as the vehicle is motionless and the driver depresses the brake pedal. The engine restarts automatically when the driver removes his foot from the brake pedal, or depresses the accelerator pedal.

Standard for CL 500 BlueEFFICIENCY

***

Recuperation: if the driver removes his foot from the accelerator pedal or applies the brakes in overrun mode, kinetic energy is recovered and fed to the battery.

Standard for CL 500 BlueEFFICIENCY


Comfort:


Memory package: three memory settings are stored for both the driver's and the front passenger seat. The settings for the steering wheel and exterior mirrors are also stored.

Standard

Active multicontour seats: depending on the steering angle, lateral acceleration and speed, the inflation pressure and volume of the air chambers in the side bolsters of the seat backrests are varied to give the driver and front passenger even better lateral support.

The seats also have a massage function.

Optional (standard in the CL 600)

Ambient lighting: when driving at night, optical fibres behind the trim on the dashboard and door panels provide a pleasant lighting atmosphere in the interior. The driver can choose between lighting moods "solar", "polar" and "neutral"

Optional(standard in the CL 600)

PARKTRONIC including Parking Guidance: ultrasonic sensors measure the length of parking spaces as the car drives past; instructions for safe parking appear in the display.

Standard

Reversing camera: the area behind the CL-Class is shown in the COMAND display, and coloured directional lines show a precisely calculated path into a parking space and display the required space.

Optional

Audio and communication:


Bluetooth interface: the mobile phone is wirelessly linked to the hands-free system.

Standard

COMAND:control and display system that integrates the audio unit, DVD player and telephone operation and also features navigation data are stored on a hard disc. Further functions include the MUSIC REGISTER and voice control.

Standard

Gracenote®:database that recognises music tracks on a CD/DVD or from the MUSIC REGISTER and shows the title, album and artist on the colour display.

Standard

Convenience telephony: the driver and passengers are able to conduct onboard telephone conferences by mobile phone, and send or receive SMS messages. The phone is housed in a cradle under the armrest.

Optional (standard in the CL 600)

Media Interface: this universal interface allows portable audio devices to be connected to and controlled by the infotainment system of the CL-Class.

Standard

Music Search: search function that searches SD memory cards, USB sticks, CDs and DVDs for specific music tracks and performers.

Standard

Digital radio: a special DAB (Digital Audio Broadcasting) tuner and additional aerials allow the reception of digital radio broadcasts.

Optional aspart of the Front SeatEntertainment package

SPLITVIEW:the driver and front passenger are able to view different content on one and the same screen at the same time.

Optional aspart of the Front SeatEntertainment package(standard for CL 600) ***

Harman Kardon® Logic 7® surround sound system: a multi-channel system with innovative digital technology, an output of 610 watts and 14 loudspeakers provides surround-sound for every seat.

Optional aspart of the Front SeatEntertainment package (standard for CL 600)

Speed Limit Assist: a camera fitted behind the windscreen detects speed limit signs on the roadside. The relevant limit is then displayed in navigation system map display and in the instrument cluster.

Optional as part of the Navigation package (standard for CL 600) ***

LINGUATRONIC:the voice control system operates the radio, CD/DVD-player, CD/DVD-changer, navigation system and telephone.

Optional as part of the Navigation package(standard for CL 600)

MUSIC REGISTER with a 7.2 GB hard disc which stores around 2500 digital music files in the MP3, AAC or WMA format. These can be loaded from PC memory cards.

Optional as part of the Navigation package (standard for CL 600)

*Selection

*** Not available in all countries

Mercedes-Benz CL 500 BlueEFFICIENCY

Engine

Number of cylinders/arrangement


8/V, 4 valves per cylinder

Displacement

cc

4663

Bore x stroke

mm

92.9 x 86

Rated output

hp

435 at 5250 rpm

Rated torque

Nm

530 at 1800-3500 rpm

Compression ratio


10.5:1

Mixture formation


Microprocessor-controlled direct petrol injection with direct-control 180-bar piezo injectors, biturbo system

Power transmission

Drive system


Standard drive system

Transmission


7-speed automatic transmission

Ratios

Final drive

1st gear

2nd gear

3rd gear

4th gear

5th gear

6th gear

7th gear

Reverse

2.65

4.38

2.86

1.92

1.37

1.00

0.82

0.73

-3.426/-2.23

Chassis and suspension

Front axle

Four-link suspension, Active Body Control

Rear axle

Multi-link independent suspension, Active Body Control

Braking system

Disc brakes all-round, front and rear internally ventilated, front perforated, electrically actuated drum-type parking brake at rear, ABS, Brake Assist, ESP®

Steering

Rack-and-pinion with speed-sensitive power assistance, steering damper

Wheels

8.5 J X 18 ET 43

Tyres

255/45 R 18

Dimensions and weights

Wheelbase

mm

2955

Track, front/rear

mm

1601/1607

Overall length

mm

5095

Overall width

mm

1871

Overall height

mm

1419

Turning circle

m

11.63

Boot capacity*

l

490

Kerb weight (EC)**

kg

2070

Payload (basis: ready-to-drive state as defined by EC)

kg

515

Perm. GVW

kg

2585

Tank capacity/incl. reserve

l

90/11

Performance and fuel consumption

Acceleration 0-100 km/h

s

4.9

Top speed

mph

155

Fuel consumption***

mpg

29.73

CO2 emissions

g/km

224-232

*acc. to VDA measuring method; ** incl. 75 kg for driver and luggage; *** combined

Mercedes-Benz CL 600

Engine

Number of cylinders/arrangement


12/V, 3 valves per cylinder

Displacement

Cc

5513

Bore x stroke

Mm

82 x 87

Rated output

hp

517 at 5000 rpm

Rated torque

Nm

830 at 1900-3500 rpm

Compression ratio


9.0 : 1

Mixture formation


Microprocessor-controlled petrol injection with hot film airflow measurement, biturbo system

Power transmission

Drive system


Standard drive system

Transmission


5-speed automatic transmission

Ratios

Final drive

1st gear

2nd gear

3rd gear

4th gear

5th gear

Reverse

2.65

3.60

2.19

1.41

1.00

0.83

-3.16/-1.93

Chassis and suspension

Front axle

Four-link suspension, Active Body Control

Rear axle

Multi-link independent suspension, Active Body Control

Braking system

Disc brakes all-round, front and rear internally ventilated, front perforated, electrically actuated drum-type parking brake at rear, ABS, Brake Assist, ESP®

Steering

Rack-and-pinion with speed-sensitive power assistance, steering damper

Wheels

Front: 8.5 J x 18 ET 43; rear: 9.5 J x 18 ET 43

Tyres

Front: 255/45 R 18; rear: 275/45 R 18

Dimensions and weights

Wheelbase

mm

2955

Track, front/rear

mm

1601/1607

Overall length

mm

5095

Overall width

mm

1871

Overall height

mm

1419

Turning circle

m

11.63

Boot capacity*

l

490

Kerb weight (EC)**

kg

2185

Payload (basis: ready-to-drive state as defined by EC)

kg

435

Perm. GVW

kg

2620

Tank capacity/incl. reserve

l

90/11

Performance and fuel consumption

Acceleration 0-100 km/h

s

4.6

Top speed

mph

155 (limited)

Fuel consumption***

mpg

20.46

CO2 emissions

g/km

322-328

*acc. to VDA measuring method; ** incl. 75 kg for driver and luggage; *** combined
