Mercedes-Benz Concept Coupe SUV was unveiled in the beginning of the month with a first picture and some details. Now, the German company is releasing a package of images as well as detailed information around this extremely sporty study concept. At first glance, the SUV impresses as a typical coupe with its flowing sideline, stretched cabin and striking radiator grille with central chrome louvre. At the same time, it stands out with its muscular wings, large wheel arches, 22-inch wheels, high beltline and generous ground clearance. Not to mention its dynamic handling on the road.

The four-door, all-wheel drive Coupe has a length of almost five metres, while its width is of two metres thanks to its broad shoulders and flared wheel arches. However, the height is around 1.75 metres, thus exhibiting the flat, extended roofline that is typical of a sports coupe. The concept sports recessed door handles and frameless side windows that blend perfectly into the vehicle flanks.

Mercedes Benz' new concept SUV is painted in the "Alu Beam" paint finish, which is also reminiscent of the technically ground-breaking Silver Arrows of the 1930s and 1950s. Other highlights include upright sports grille with single louvre, framed by the three-dimensionally designed all-LED Multibeam headlamps.

Soft cubes dominate the grille insert. Harmoniously integrated illuminated side sills are reminiscent of the running boards found on classic SUVs or off-roaders. The direction indicators work with a moving digital light band whose lighting elements light up sequentially from inside to outside. In this way they indicate the change in direction in two ways.

The coupe nature of this concept SUV can be seen also in the design of the rear end with the slim band of rear lights and the registration plate incorporated into the rear bumper. Another feature is the typical shape of the rear window, which is rounded off at the top.

The tailpipes of the dual-flow exhaust system are integrated into the simulated underguard. Polished aluminium dominates here, as on the integral door handles, the side sills, the front air intakes and the edging of the cabin. At last, Mercedes-Benz Concept Coupe SUV runs on wide 22-inch wheels with tyres in size 305/45 R 22.

Mercedes-Benz Concept Coupe SUV Technical Data:

Body type/construction Four-door, four-seater coupé study, frameless side windows
Engine V6, 4 valves per cylinder
Displacement 2996 cc
Rated output 245 kW (333 hp) at 5500 rpm
Rated torque 480 Nm at 1400- 4000 rpm
Mixture formation Electronic direct petrol injection, piezo injectors, 2 turbochargers
Transmission 9G-TRONIC PLUS nine-speed automatic transmission with torque converter lock-up, twin-turbine damper with centrifugal pendulum and DIRECT SELECT gearshift, ECO start/stop
Drive 4MATIC permanent all-wheel drive, ASR, ESP®, 4ETS,
Chassis and suspension Double wishbone at the front, multi-link at the rear, special air suspension with selective damping, ACTIVE CURVE SYSTEM active roll stabilisation
Braking system High-performance ceramic composite brake system, electric (parking brake, ABS, BAS PLUS PRE-SAFE© Brake
Steering Electromechanical power steering
Transmission modes COMFORT, SLIPPERY, SPORT, SPORT+, INDIVIDUAL
Wheelbase 2916 mm
Track, front/rear 1683 / 1768 mm
Wheel/tyre size front/rear 10J x 22 305/45 R 22 / 11J x 22 305/45 R 22
length 4935 mm
Width with/without mirrors 2208 / 2044 mm
Height 1739 mm

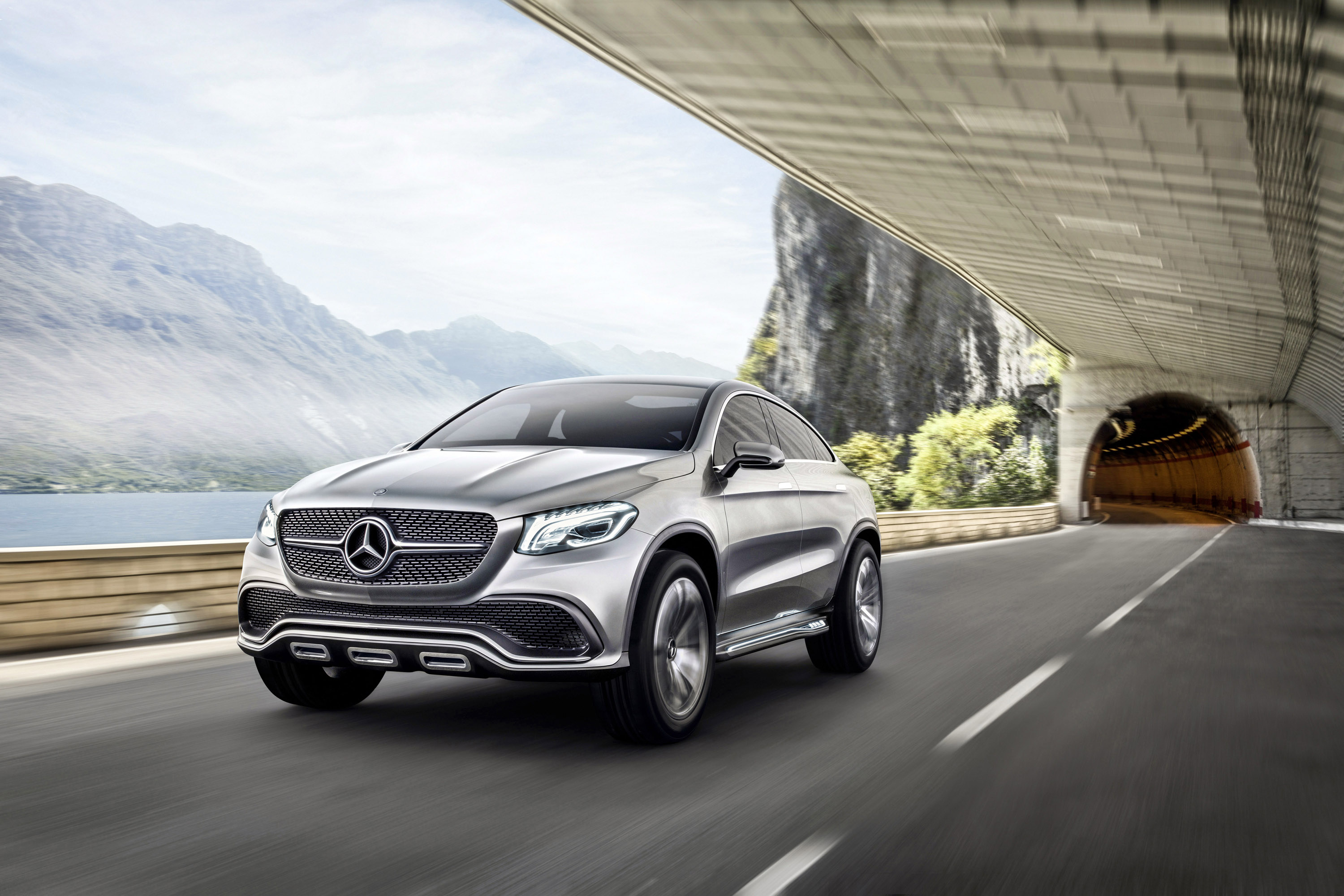

Mercedes-Benz Concept Coupe SUV , 1 of 31

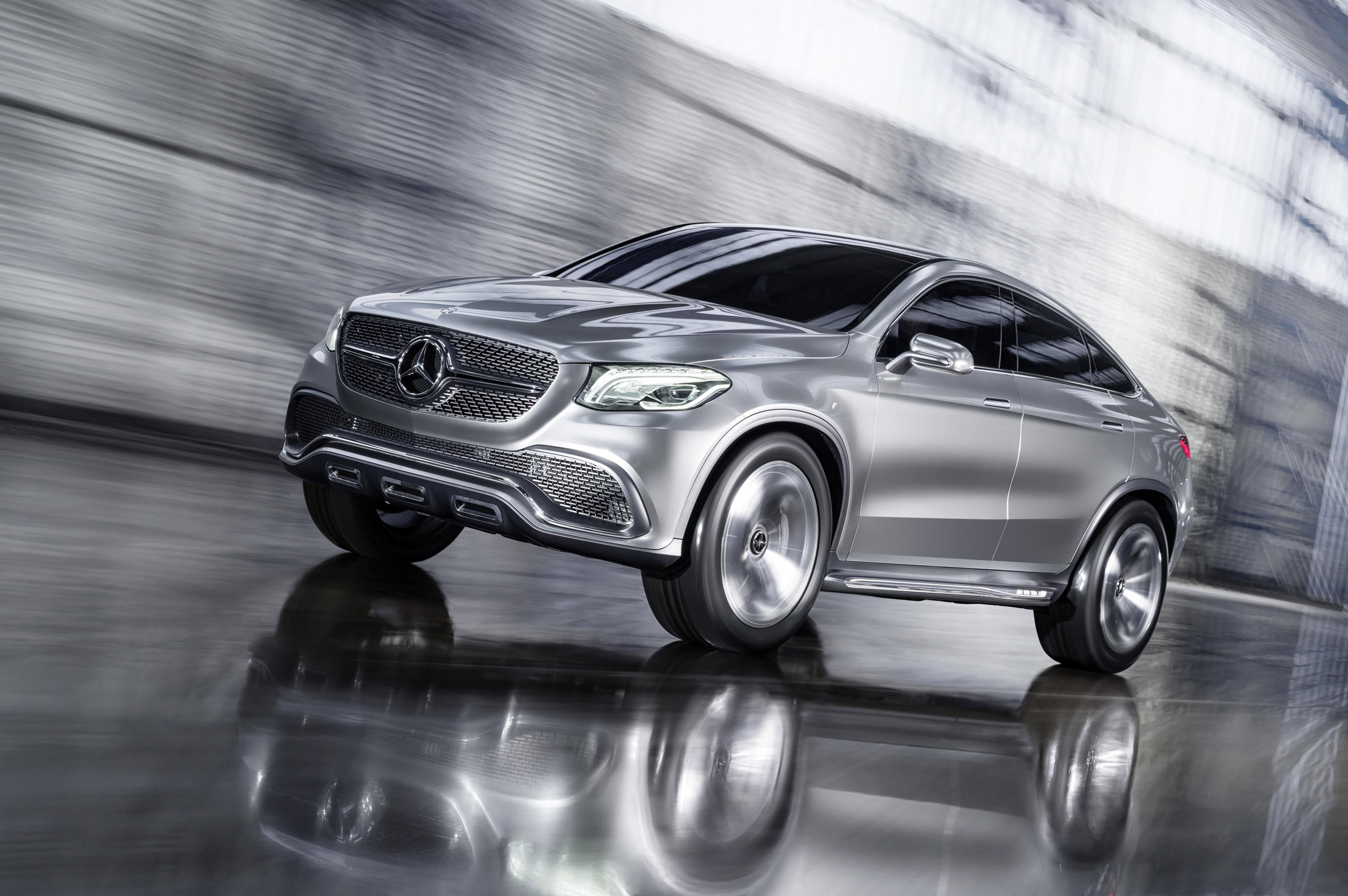

Mercedes-Benz Concept Coupe SUV , 2 of 31

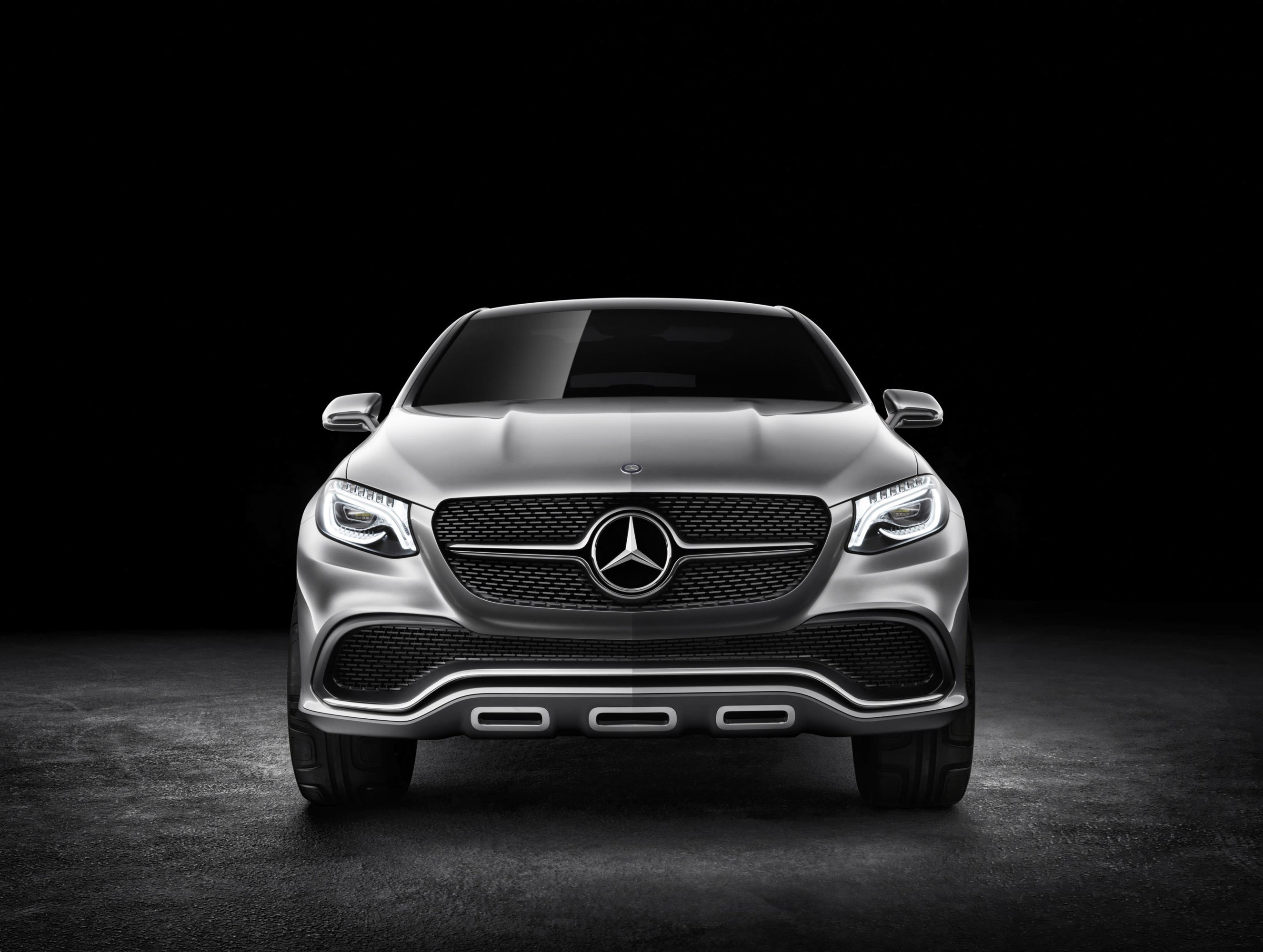

Mercedes-Benz Concept Coupe SUV , 3 of 31

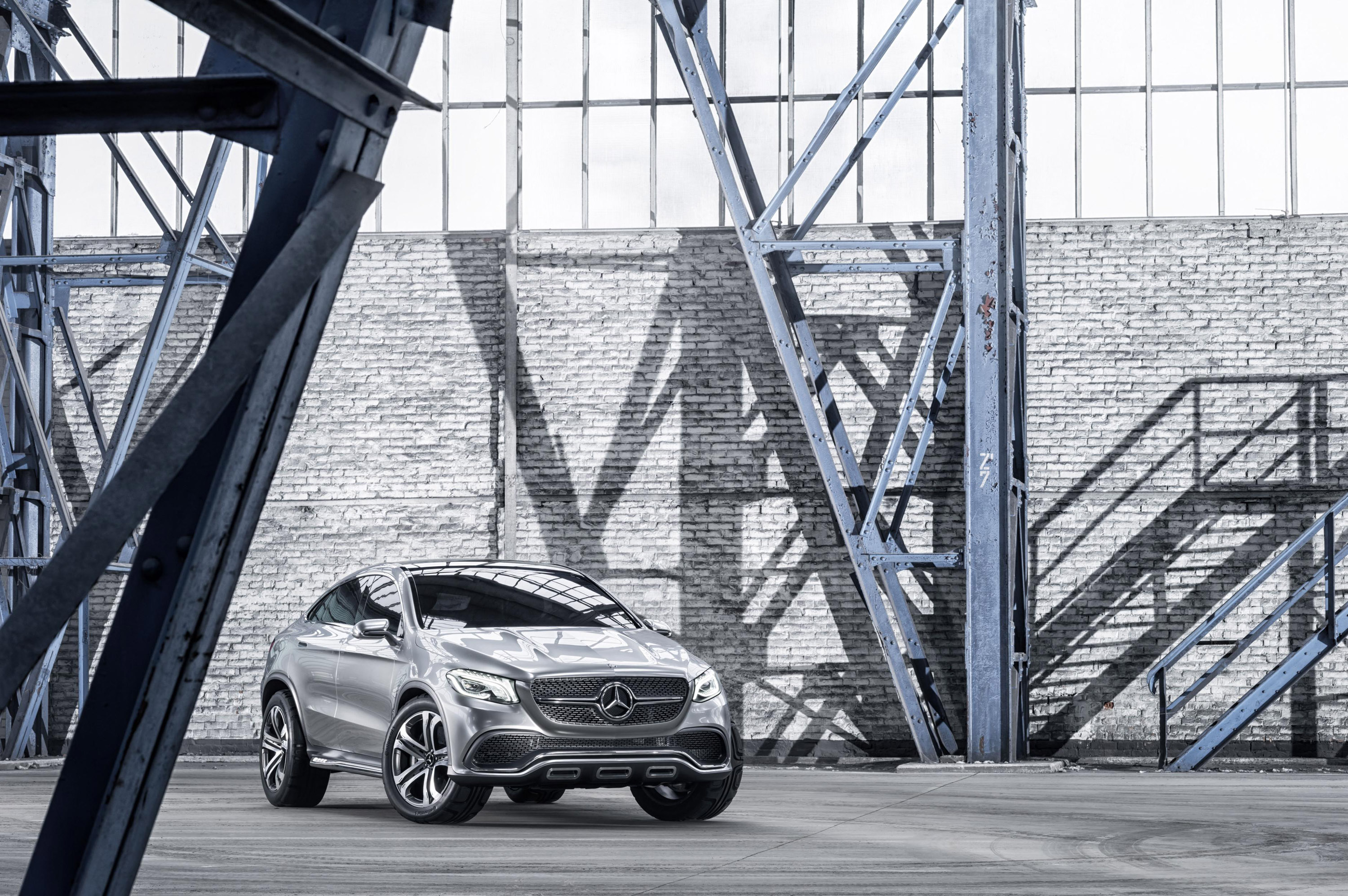

Mercedes-Benz Concept Coupe SUV , 4 of 31

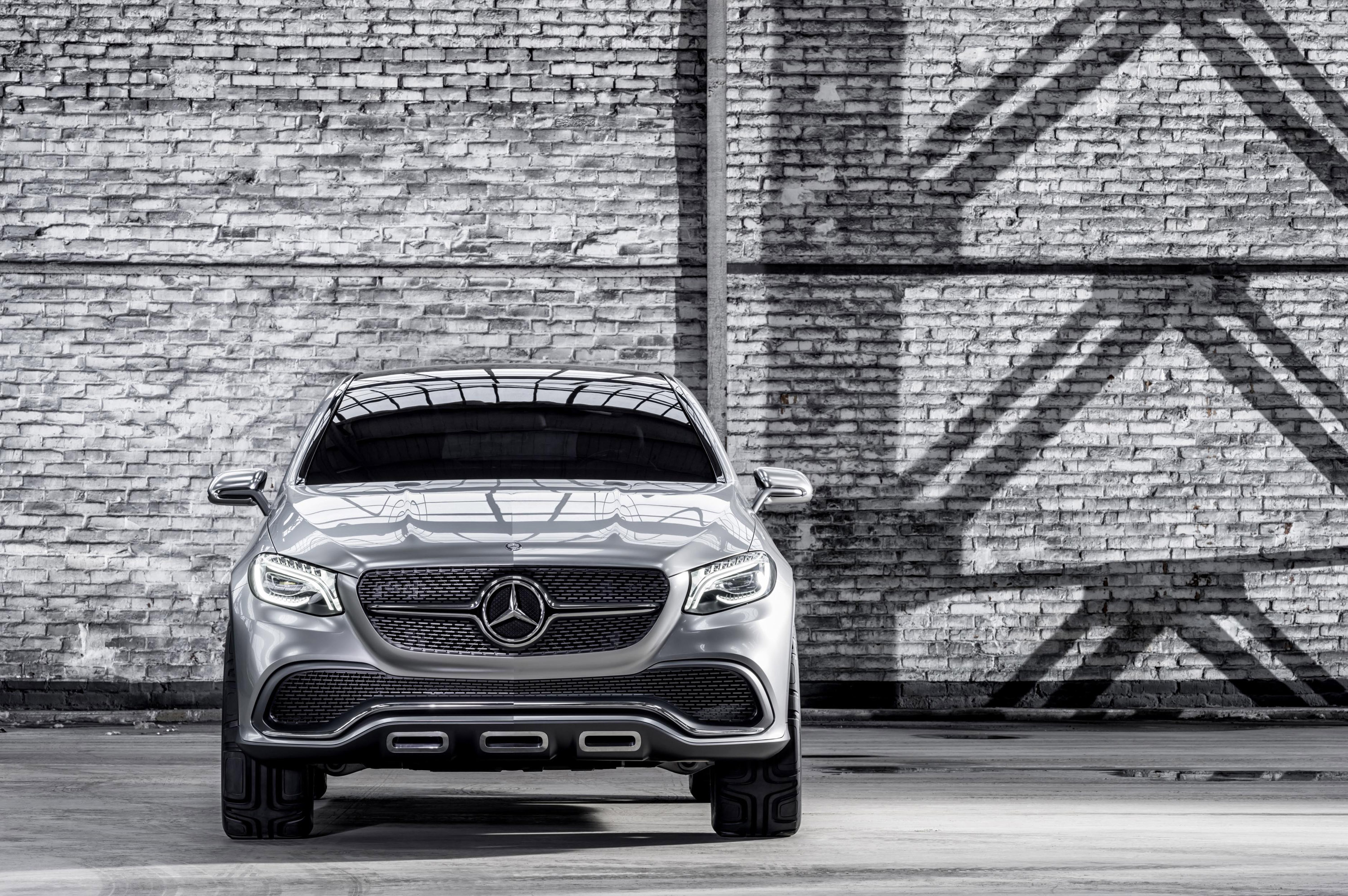

Mercedes-Benz Concept Coupe SUV , 5 of 31

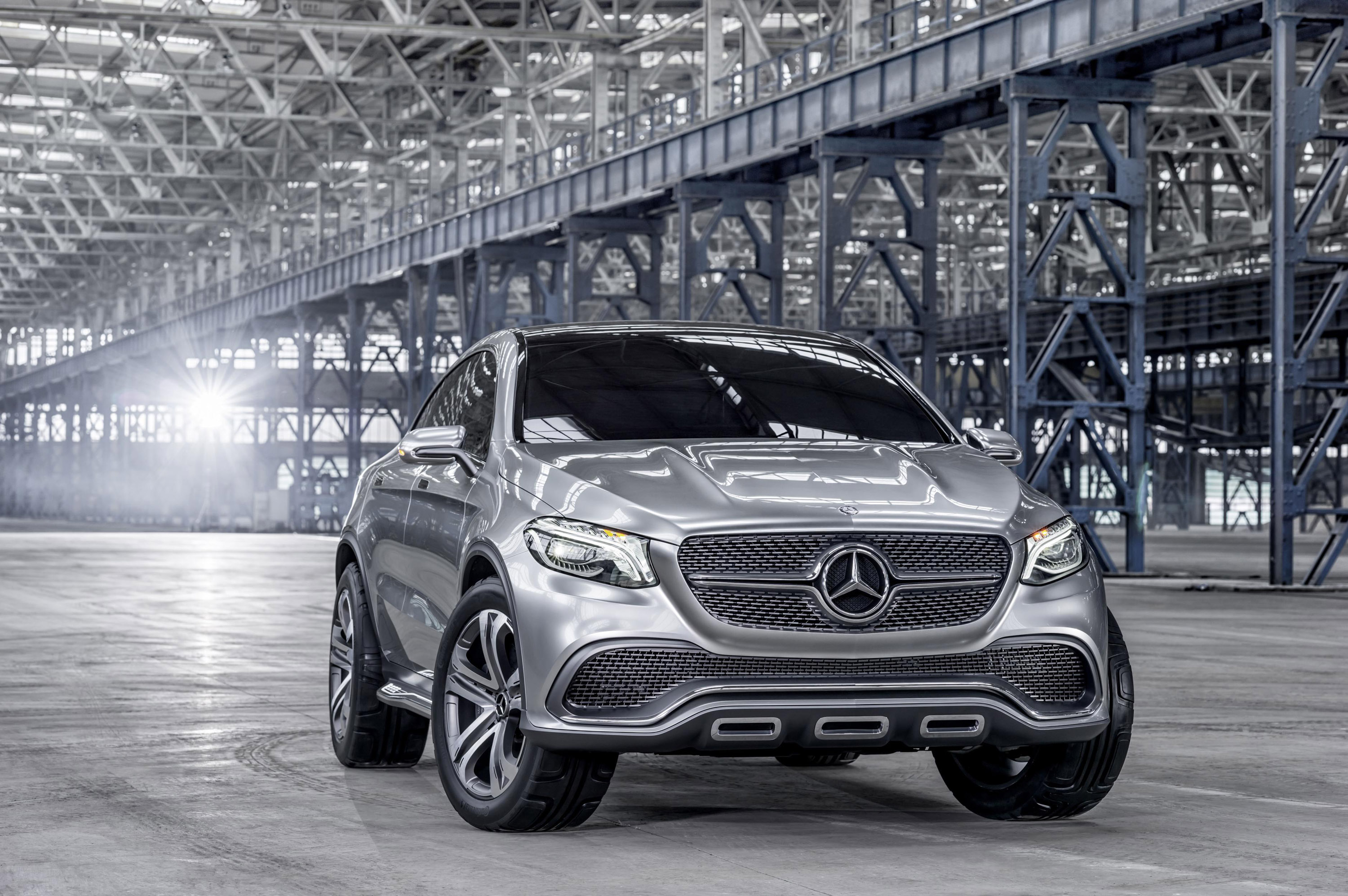

Mercedes-Benz Concept Coupe SUV , 6 of 31

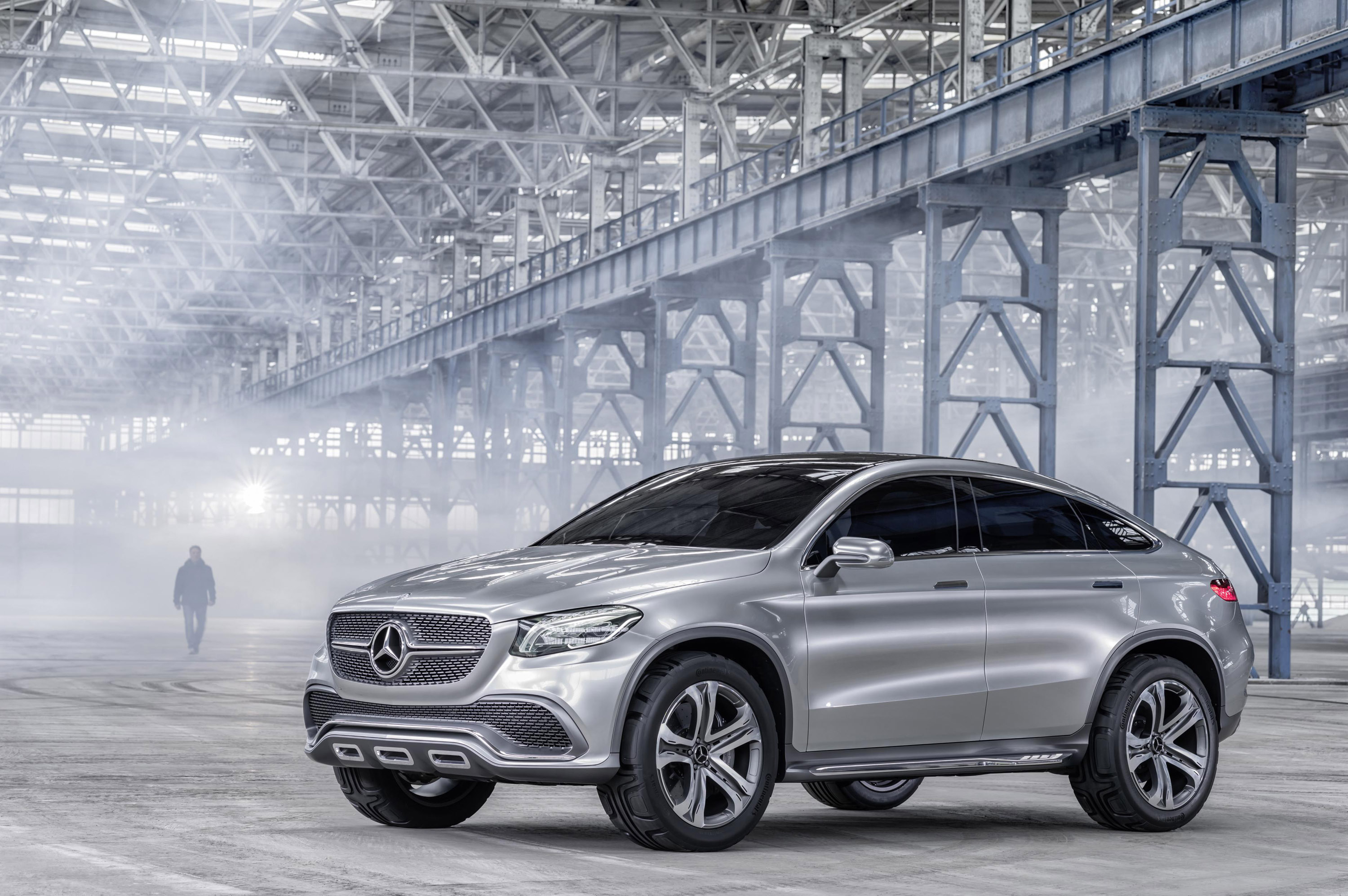

Mercedes-Benz Concept Coupe SUV , 7 of 31

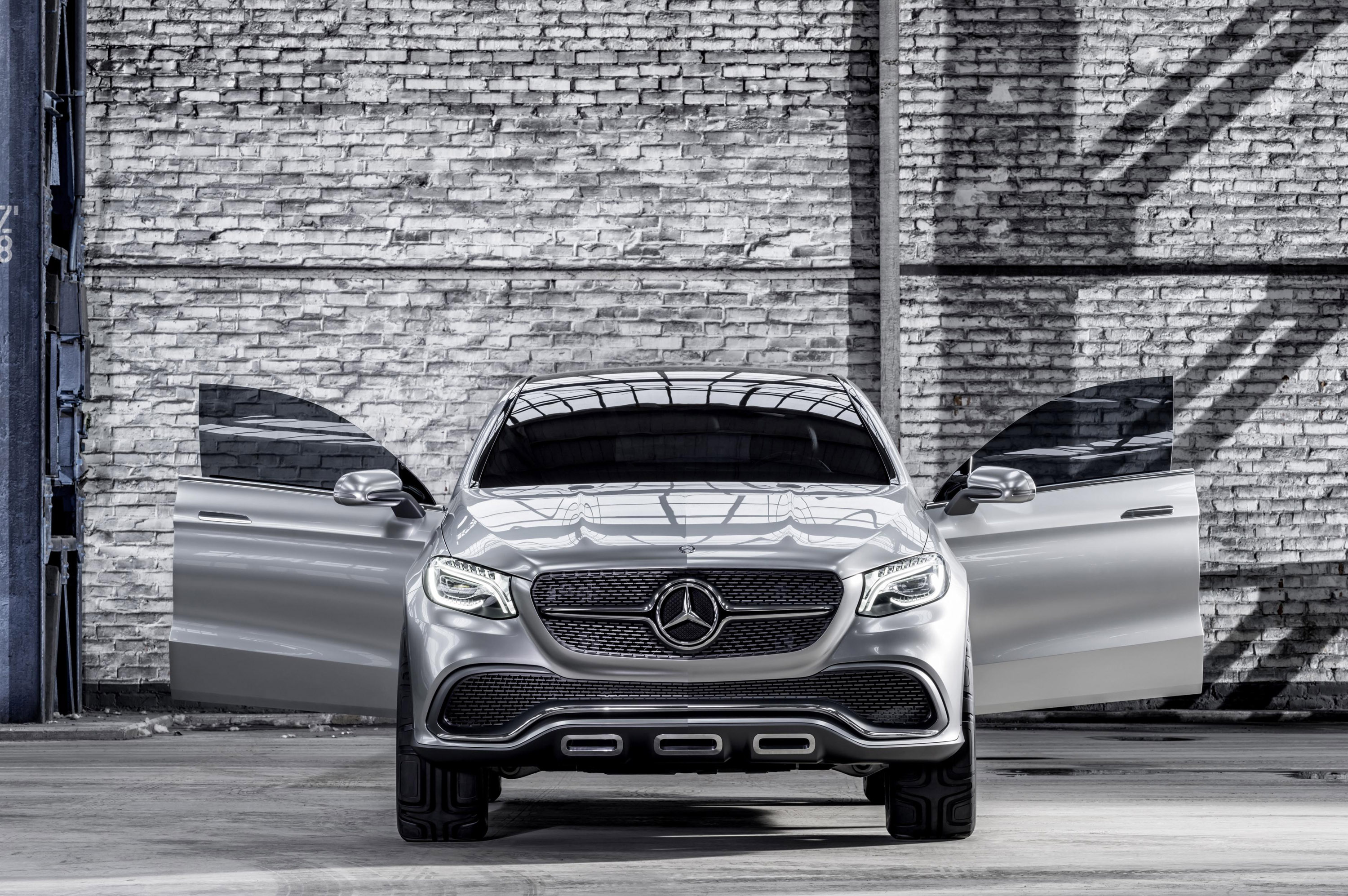

Mercedes-Benz Concept Coupe SUV , 8 of 31
Mercedes-Benz Concept Coupe SUV , 9 of 31
Mercedes-Benz Concept Coupe SUV , 10 of 31
Mercedes-Benz Concept Coupe SUV , 11 of 31
Mercedes-Benz Concept Coupe SUV , 12 of 31
Mercedes-Benz Concept Coupe SUV , 13 of 31
Mercedes-Benz Concept Coupe SUV , 14 of 31
Mercedes-Benz Concept Coupe SUV , 15 of 31
Mercedes-Benz Concept Coupe SUV , 16 of 31
Mercedes-Benz Concept Coupe SUV , 17 of 31
Mercedes-Benz Concept Coupe SUV , 18 of 31
Mercedes-Benz Concept Coupe SUV , 19 of 31
Mercedes-Benz Concept Coupe SUV , 20 of 31
Mercedes-Benz Concept Coupe SUV , 21 of 31
Mercedes-Benz Concept Coupe SUV , 22 of 31
Mercedes-Benz Concept Coupe SUV , 23 of 31
Mercedes-Benz Concept Coupe SUV , 24 of 31
Mercedes-Benz Concept Coupe SUV , 25 of 31
Mercedes-Benz Concept Coupe SUV , 26 of 31
Mercedes-Benz Concept Coupe SUV , 27 of 31
Mercedes-Benz Concept Coupe SUV , 28 of 31
Mercedes-Benz Concept Coupe SUV , 29 of 31
Mercedes-Benz Concept Coupe SUV , 30 of 31
Mercedes-Benz Concept Coupe SUV , 31 of 31

Source: Mercedes-Benz
