2012 Hyundai i30 is currently exhibited at the Frankfurt Motor Show.

The hatchback can be ordered with one of six different engines with outputs between 90PS (66 kW) and 135PS (99 kW). The engines can be mated to either 6-speed manual or 6-speed automatic gearbox. This guarantees nice performance and low fuel consumption.

The suspension includes independent subframe-mounted MacPherson struts, with coil springs and gas-filled shock absorbers at the front and independent subframe-mounted multi-links, coil springs and gas-filled shock absorbers at the rear.

The stopping power is guaranteed thanks to a 15" or 16" ventilated discs up front and 14" solid discs at the rear.

The wheel choice includes 15",16" and 17" alloy wheels fitted with 195 / 65 R15, 205 / 55 R16 and 225 / 45 R17, respectively.

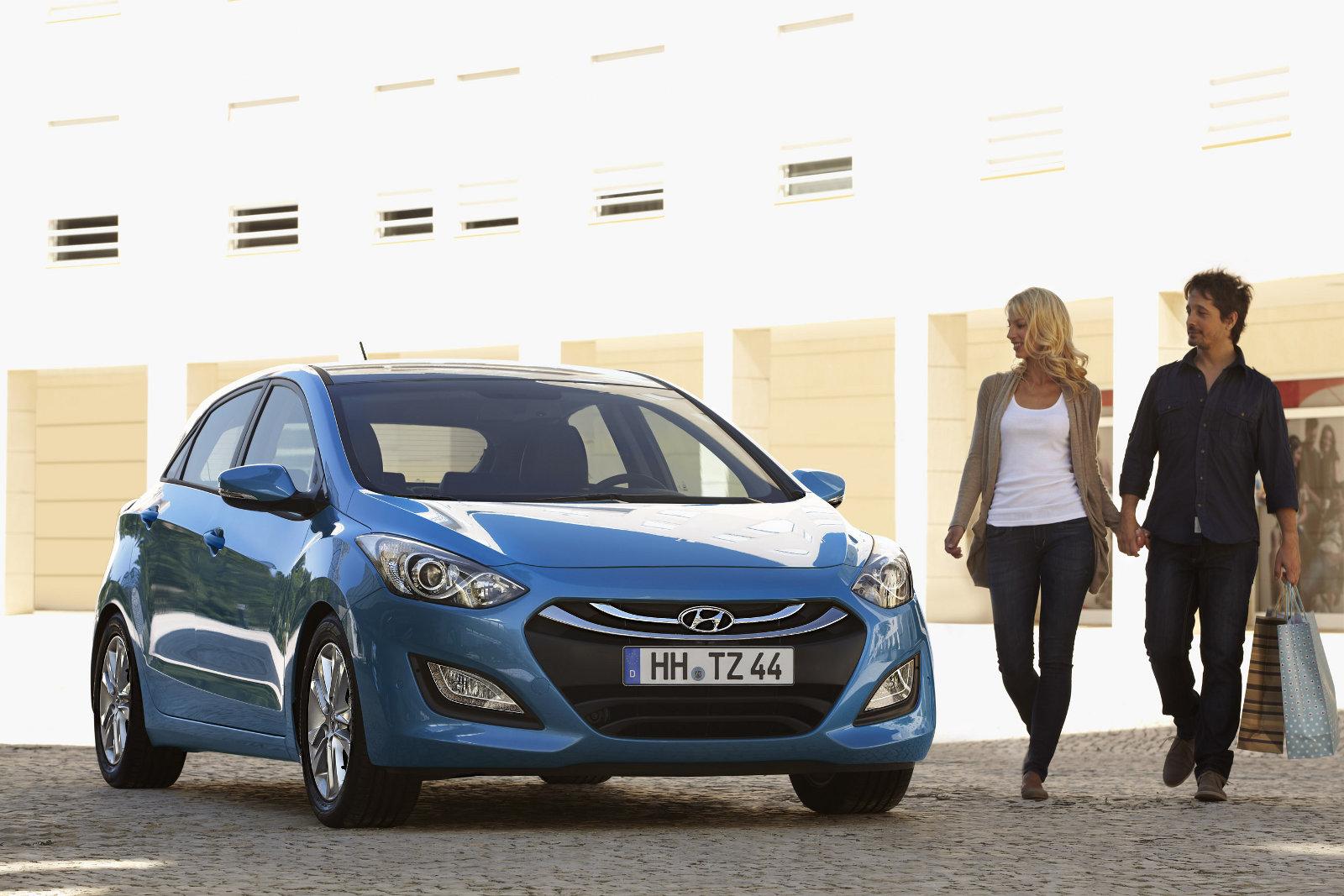

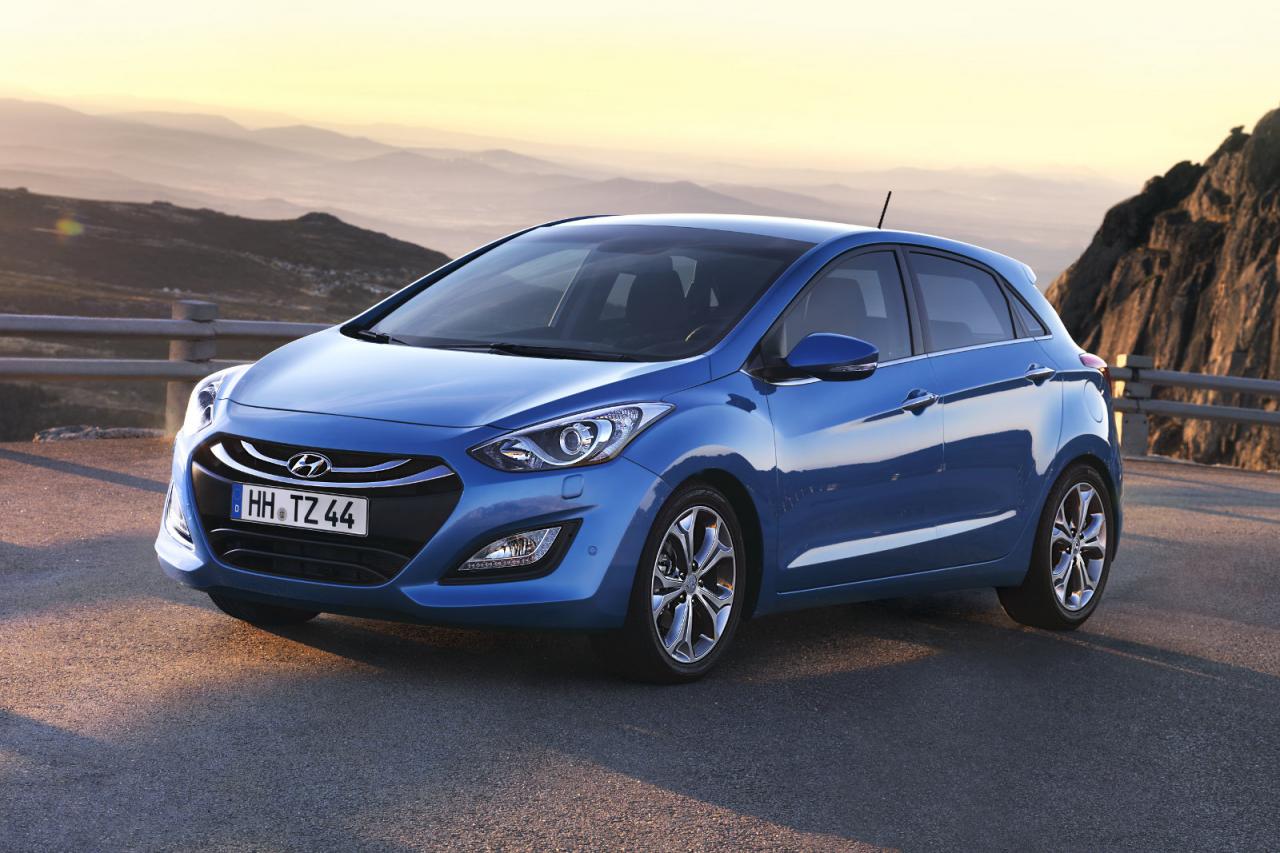

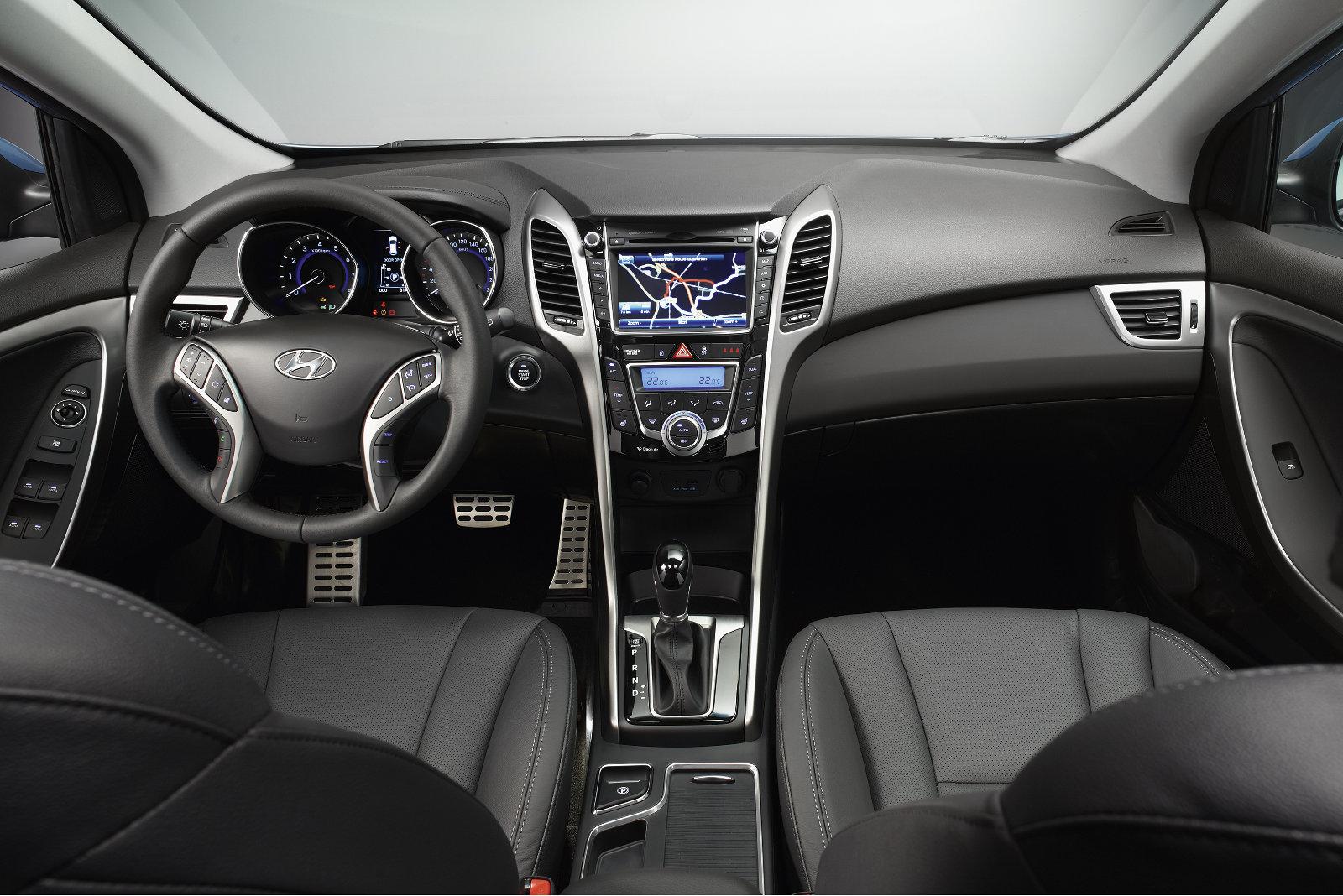

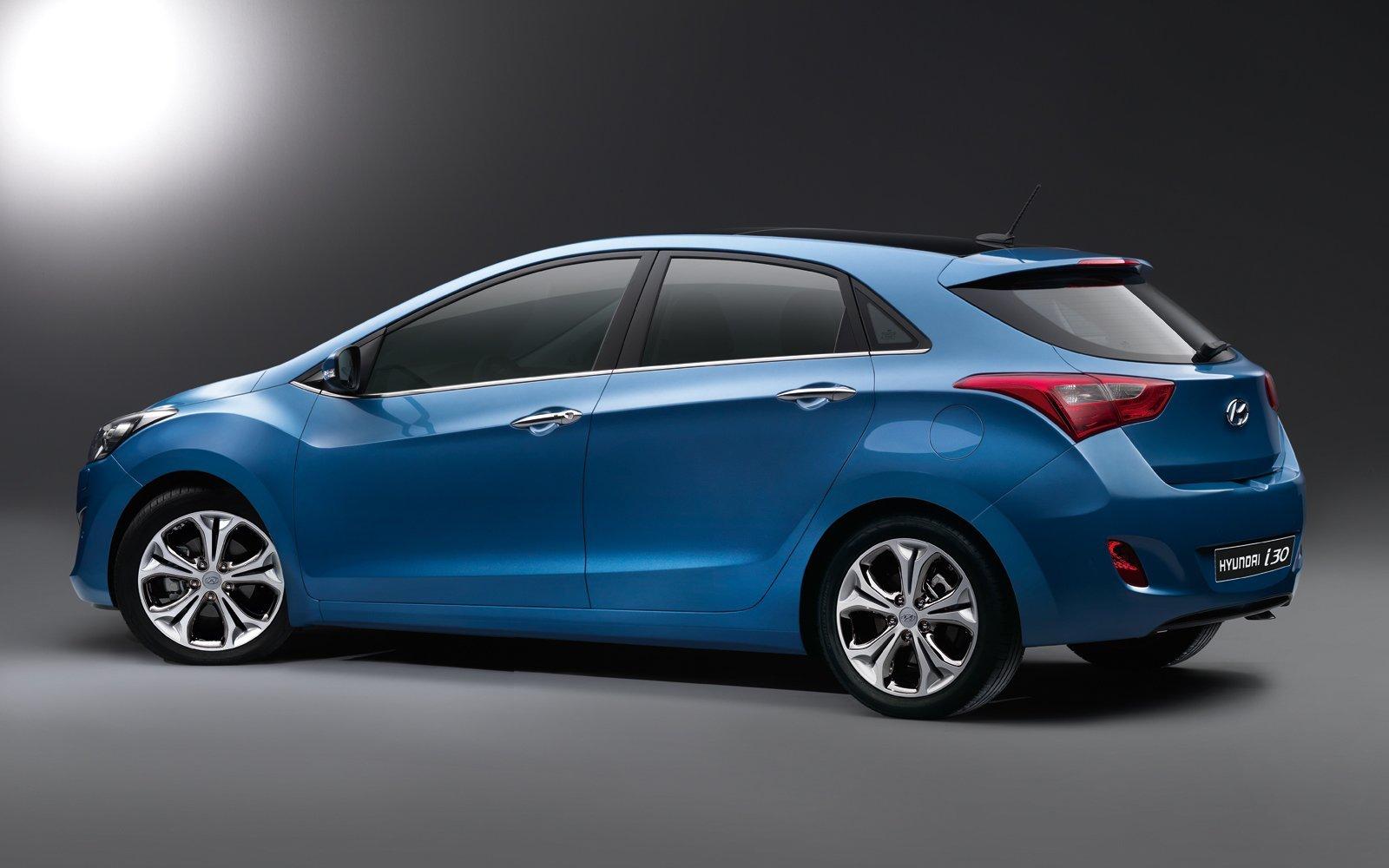

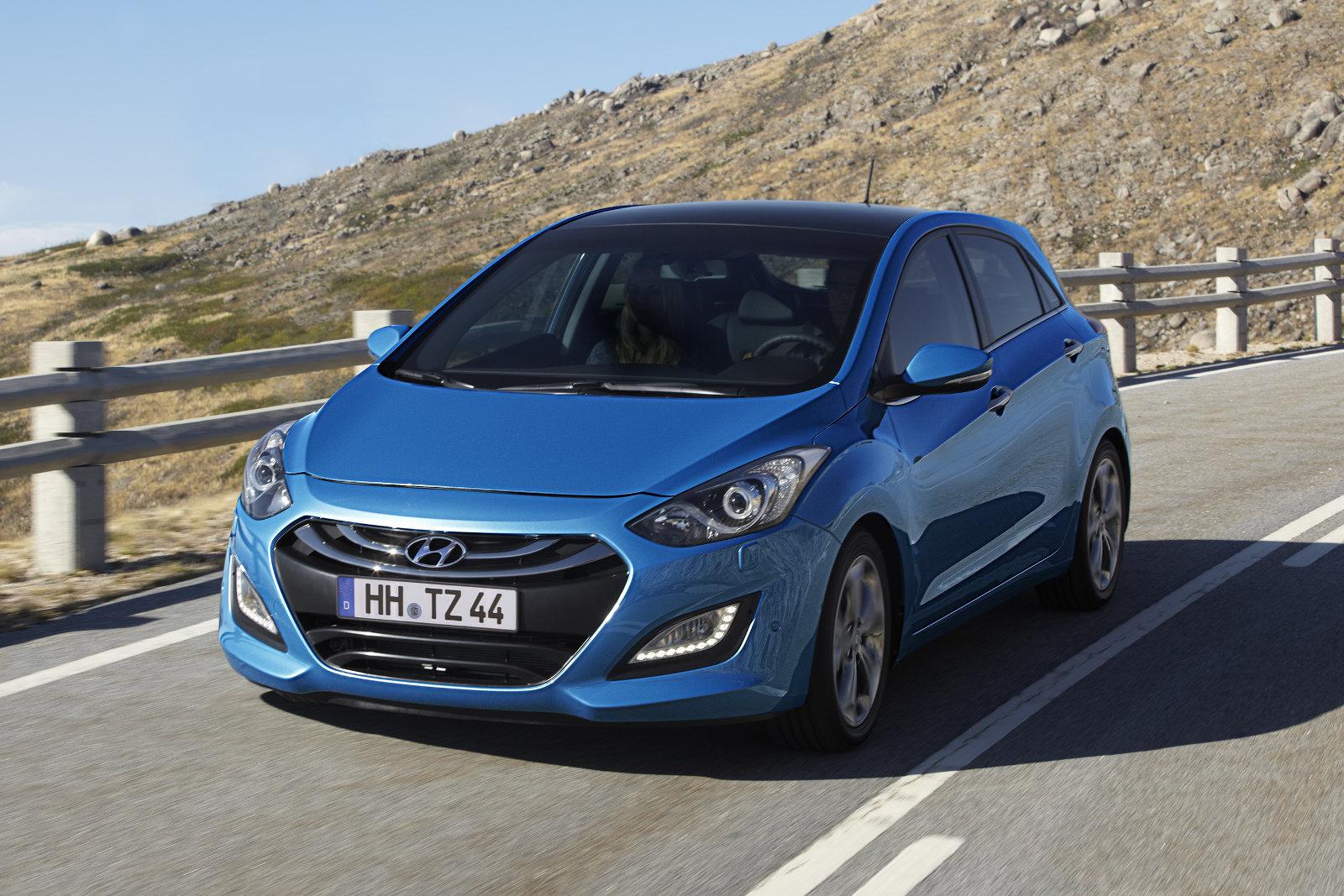

2012 Hyundai i30

2012 Hyundai i30, 1 of 6
2012 Hyundai i30, 2 of 6
2012 Hyundai i30, 3 of 6
2012 Hyundai i30, 4 of 6
2012 Hyundai i30, 5 of 6
2012 Hyundai i30, 6 of 6

Technical specifications: 2012 Hyundai i30

Diesel engines

1,4-litre 90 ps Type / capacity U-II, WGT, four-cylinder, DOHC 16-valve / 1396 cc Power / torque 90 ps (66.0 kW) @ 4000 rpm / 220 Nm @1500~2750 rpm Bore x Stroke (mm) 75 x 79 Compression ratio 17.0

1,6-litre 110 ps Type / capacity U-II, VGT, four-cylinder, DOHC 16-valve / 1582 cc Power / torque 110 ps (81.0 kW) @ 4000 rpm / 260 Nm @ 1900~2750 rpm Bore x Stroke (mm) 77.2 x 84.5 Compression ratio 17.3

New 1,6-litre 128 ps Type / capacity U-II, VGT, four-cylinder, DOHC 16-valve / 1582 cc Power / torque 128 ps (94.0 kW) @ 4000 rpm / 260 Nm @ 1900~2750 rpm Bore x Stroke (mm) 77.2 x 84.5 Compression ratio 17.3

Gasoline engines 1,4-litre 100 ps Type / capacity Gamma 1.4, four-cylinder, DOHC 16-valve / 1396 cc Power / torque 100 ps (73.2 kW) @ 5500 rpm / 137 Nm @ 4200 rpm Bore x Stroke (mm) 77 x 74.99 Compression ratio 10.5

1,6-litre 120 ps Type / capacity Gamma 1.6 MPI, four-cylinder, DOHC 16-valve / 1591 cc Power / torque 120 ps (88 kW) @ 6300 rpm / 156Nm @ 4850 rpm Bore x Stroke (mm) 77 x 85.44 Compression ratio 10.5

1,6-litre 135 ps Type / capacity Gamma GDI, four-cylinder, DOHC 16-valve / 1591 cc Power / torque 135 ps (99 kW) @ 6300 rpm / 164 Nm @ 4850 rpm Bore x Stroke (mm) 77x85.44 Compression ratio 11

Transmissions

6-speed manual and automatic

Suspension and damping

Front Fully independent subframe-mounted MacPherson struts, with coil springs and gas-filled shock absorbers. Anti-roll stabiliser bar. Rear Fully independent subframe-mounted multi-links, coil springs and gas-filled shock absorbers.

Steering

Type Motor-driven power steering, with Flex SteerTM Steering wheel turn 2,85 Turning circle 10,6 metres Brakes Front 15 / 16 inch ventilated discs Rear 14 inch solid discs Wheels and tyres Standard 15 inch steel / 15 inch alloy 195 / 65 R15 tyres 16 inch alloy 205 / 55 R16 tyres 17 inch alloy 225 / 45 R17 tyres

Exterior

Overall length 4300 Overall width 1780 (excluding door mirrors) Overall height 1470 Wheelbase 2650 Front overhang 880 Rear overhang 770

Interior Front Rear

Leg room 1067 880 Head room 1018 963 Shoulder room 1420 1395 Capacities (litres) Fuel tank 53 litre Luggage 378 with rear seats upright

Source: Hyundai
